1. Locate the green and black/white wire that you earlier combined with a longer wire.
2. Run the wire under the molding of the driver side door up to the connector where the door closes.
3. Slide to hindge to the left and unscrew the screw with a phillips screwdriver.
4. Strip the Green/Red wire from the hindge, and connect the combined wires you ran to it.
5. Reconnect screw.
Now you might again be wondering why I did this. Besides time being limited, I couldn't find the wire under the steering colum, so I just ran it straight to the source. Also, it is tucked under very well so it is not even noticiable.
7. Now that all the wires are connected, attach the harness to the alarm BRAIN.
8. Attach the shock sensor to the BRAIN with the supplied cable.
9. Attach the led to the BRAIN with the supplied cable.
10. Attach the emergency cut off switch to the BRAIN with the supplied cable.
11. Screw back in the 2 plastic panels taken from the steering wheel colum.
12. Click hindges for the fuse cover into it's slot, but do not close.

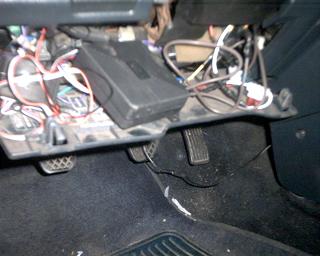

13. Place the BRAIN, all hanging wires, and the shock sensor on the fuse cover.
IMPORTANT - PLACING YOUR BRAIN IN THIS LOCATION IS NOT RECOMMENDED. It exposes your alarm to a considerable amount of heat which can damage the BRAIN. Also, if someone breaks into your car, that is easy access for them to kill the alarm. A safer place for the alarm is "in the far left side of the dash just under the airduct, u gotta remove the fusebox to get to it, but thats easy" - Thanks HBangin. "Also a very clean way to do the alarm, and make it not so easy for them to disarm the alrarm is to pull the drivers seat and full back the carpet run all you wire under the seat, zip tye them all together and loom them mount the alarm brain under the carpet under the seat, that way whe sombodys does get in your car they will not know where to look when they reach for the brain to unplug it. Everybody puts there alarms brains under the dash. well most will brake the window reach under the dash and have the alarm disarmed with in about 15secs, the alrm may go off but not for long." -Thanks CFMOTORSPORTS. My method was just to illustrate mounting the Brain.
14. Close the fuse cover.
15. Next to the change holder near the driverside door are two small squares that can be pushed out. Push one out, drill a hole in it, and place the led. Replace.
16. Find a suitable spot for the emergencey cut off switch.

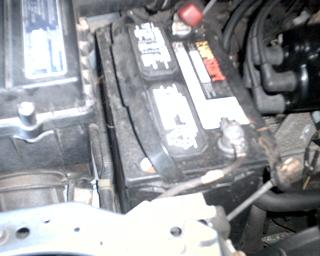

17. Reconnect the negative battery terminal and finish your drink!
Your Done!!!!
