.: E-Polarized Wave Scattering from from Infinitely Thin and Finitely Width Strip Systems |
|
|
.: Results-Graphs- Animations
•
Pictures:
- Near Field Pictures
• For Double Strips - Plane Wave
According to theory if the distance between to obstacle is proportional to the wave length lambda, the system will goes to resonance.
a) Resonance Picture for Double Strip Scattered Field Picture k=1 Plane
Wave Angle=0, L1=2PI, L2=2PI, Distance=2PI, Mash=30x30

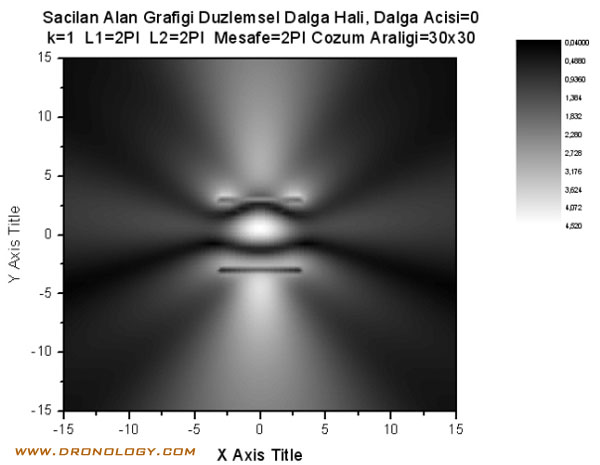

b) Resonance Picture for Double Strip Scattered Field Picture k=1 Plane Wave Angle=0, L1=2PI, L2=2PI, Distance=2PI, Mash=30x30

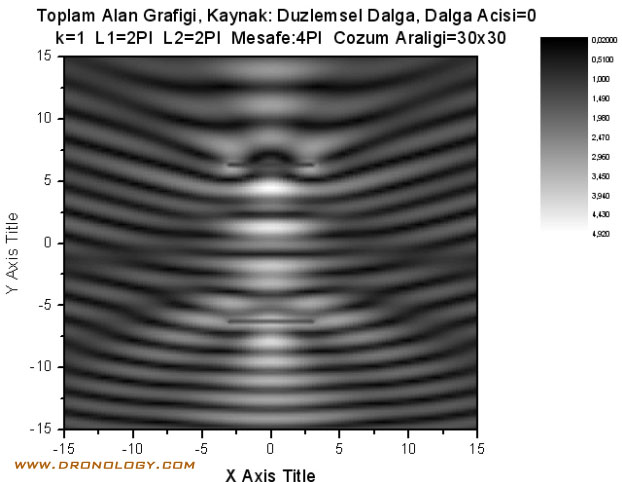

c) Resonance Picture for Double Strip Total Field Picture k=1 Plane Wave Angle=0, L1=2PI, L2=2PI, Distance=4PI, Mash=30x30
