.: E-Polarized Wave Scattering from from Infinitely Thin and Finitely Width Strip Systems |
|
|
.: Results-Graphs- Animations
•
Pictures:
- Near Field Pictures
• For Linear one Strip - Plane Wave And Point Source

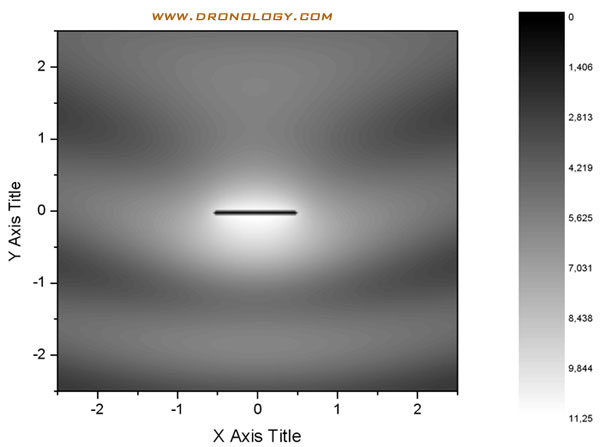

a) Near Field Pictures for Single Linear Strips Total Field Picture k=1 Plane
Wave Angle=0, L=1, Mash=5x5

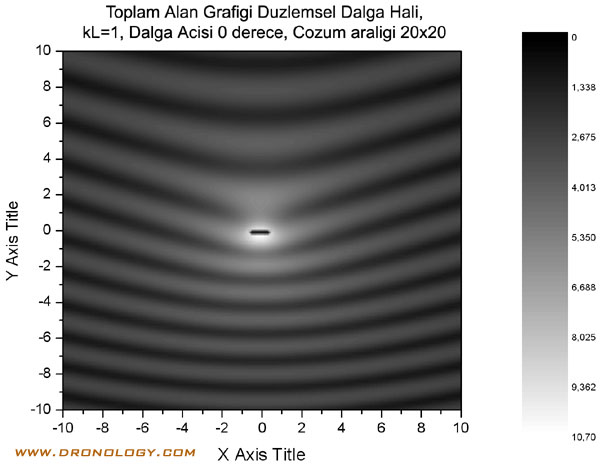

b) Near Field Pictures for Single Linear Strips Total Field Picture k=1 Plane
Wave Angle=0, L=1, Mash=20x20
c) Near Field Pictures for Single Linear

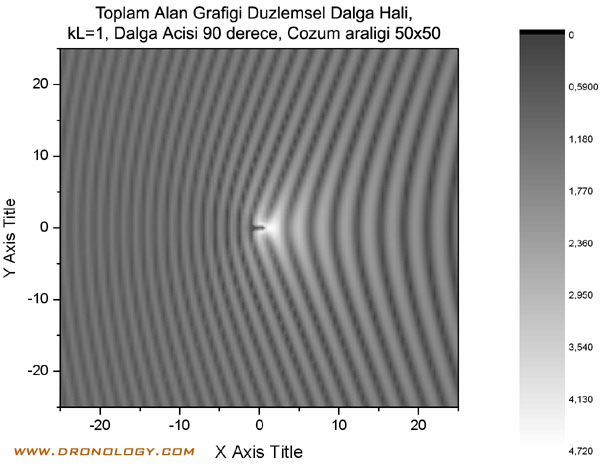

Strips Total Field Picture k=1 Plane Wave Angle=90, L=1, Mash=50x50
d) Near Field Pictures for Single Linear

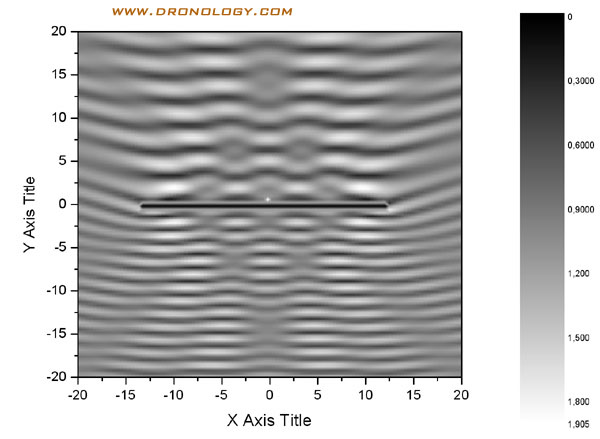

Strips Total Field Picture k=1 Plane Wave Angle=0, L=8PI, Mash=40x40
e) Near Field Pictures for Single Linear

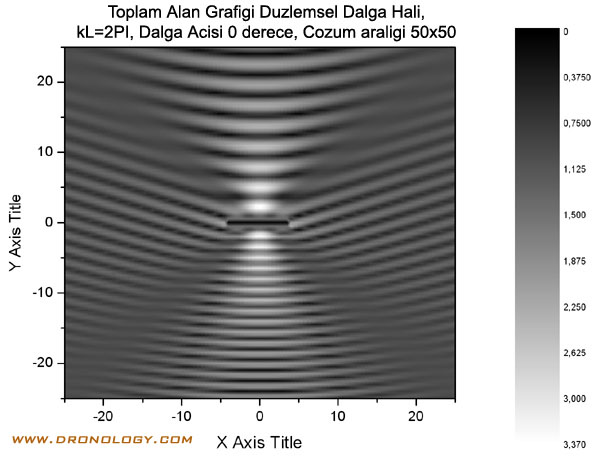

Strips Total Field Picture k=1 Plane Wave Angle=0, L=2PI, Mash=50x50
f) Near Field Pictures for Single Linear

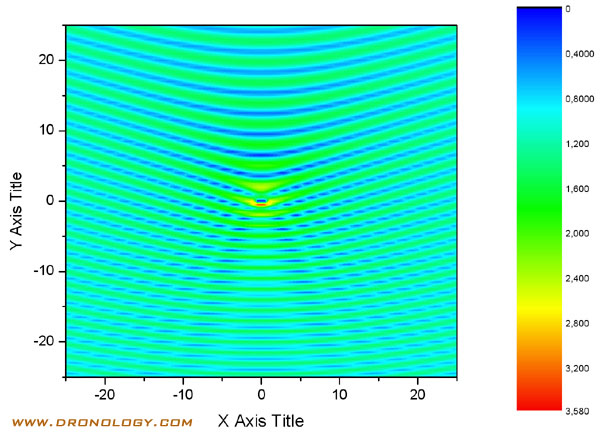

Strips Total Field Picture k=1 Plane Wave Angle=0, L=PI, Mash=50x50
g) Near Field Pictures for Single Linear

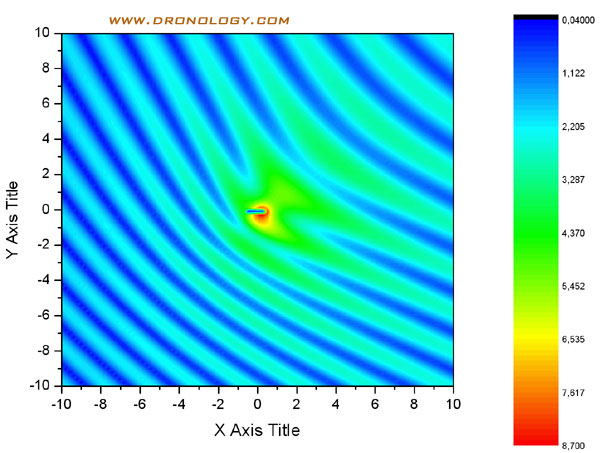

Strips Total Field Picture k=1 Plane Wave Angle=45, L=1, Mash=20x20

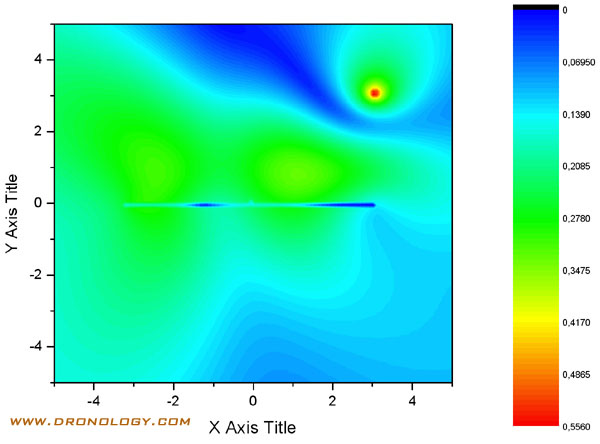

h) Near Field Pictures for Single Linear Strip Total Field for Point Source (x=PI y=PI), L=2PI, Mash=10x10 Color

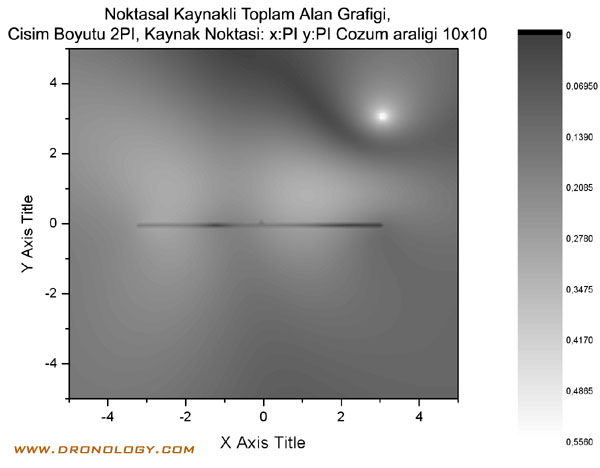

h) Near Field Pictures for Single Linear Strip Total Field for Point Source (x=PI y=PI), L=2PI, Mash=10x10 Black White
