CHINBIN'S CAGE PLANS - PAGE ONE

GO HERE FOR THE PRINTABLE VERSION

First of all, it must be said right from the start that a good amount of previous experience in carpentry is probably necessary prior to attempting this building project. If you just aren't handy in this area we would highly recommend that you find someone who is.

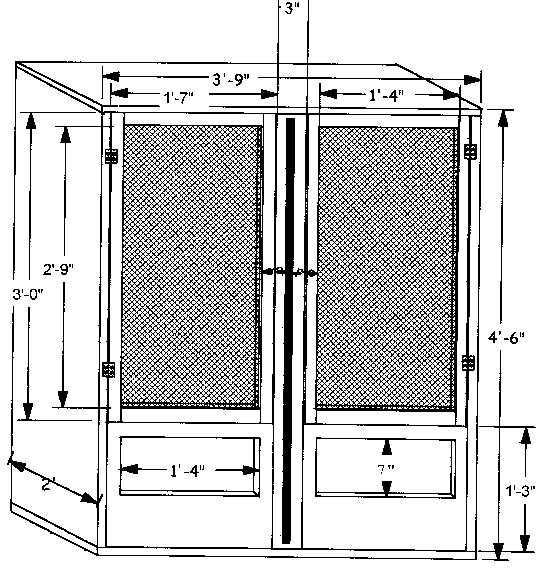

Here is what your finished cage will look like, along with the important measurements that you will need to know:



Here is your supplies/tools list


  • 3/4" Melamine Coated Pressboard -    4'x 8' - 2 sheets
  • 3/4" Plywood - 3" x 51"
  • 1/2" Plywood - 26" x 51"
  • 3/4" Melamine tape - 5 rolls
  • Heavy Gauge Screen (½" x ½"    mesh)-4' x 4'
  • hinges ( 1½" x 1½") - 4
  • Hook & Eye closures(small) - 2
  • White Shelf brackets (5" x 7") - 12
  • Latex Caulk - 1 tube
  • Plexiglass - 18" x 16"
  • 3/4" Steel Channel (for track)
        -( 2) 4'
  • metal edging for shelves (~8½')
  • pan head screws #8 x ½" - 72
  • Galvanized Finish Decking Screws    #8 x 2" - 1# (~ 60)
  • Circular Saw w/ carbide blade
  • Caulking gun
  • Drill and bits
  • table saw (optional)
  • wire cutters
  • plexiglass knife
  • iron






Now go to the next page to prepare to cut out your pieces
