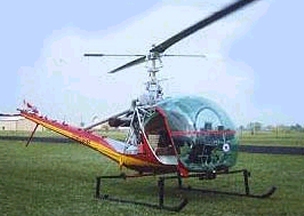

HILLER UH12E3 |
|
Con
este modelo comienza la versión mas común de este robusto helicóptero,
equipado con un motor mas potente, el Textron Lycoming VO-540-A1A de
305 hp. El US Army reemplazó todos los OH-23D por esta versión
del Hiller 12E, designándolos OH-23G. VERSIONES UH-12EL:
Versión del UH:12E con un sistema de estabilización mejorado
Ham- Standard, palas de rotor de acero inoxidable (borde de ataque?) y
un peso máximo de despegue de 1400 Kg. |
|
The commonest version of this sturdy little helicopter was the UH-12E which had a more powerful engine, the 305hp Textron Lycoming VO-540-A1A engine. The US Army replaced nearly all the OH-23Ds by Hiller 12Es, designated OH-23G. VERSIONS UH-12EL:
UH-12E
retro-fitted with Ham-Standard rotor stability augmentation system,
stainless steel rotor blades and 1400kg TOGW. |
|
Characteristics |
Information |
Characteristics |
Information |
First
Flight Primer Vuelo |
1958 |
Engine Motor |
1 Lycoming |
Seating
Capacity Plazas |
1 / 2 |
Power Potencia |
345 HP |
Empty
Weight Peso Vacío |
1759 Lb |
Hover
Ceiling O.G.E. Estacionario O.G.E |
6800 Ft |
Maximum
Weight Peso Máximo |
3100 Lb |
Hover
Ceiling I.G.E. Estacionario I.G.E |
10400 Ft |
Vel.
Cruise Vel. crucero |
78 Kts |
Service
Ceiling Techo de Servicio |
15000 Ft |
V.N.E. V.N.E |
83 Kts |
Maximum
Range (Std) Alcance (Std) |
232 NM |
Dimensions / Dimensiones |
|||
Total
Length Largo Total |
28,5 Ft |
Main
Rotor Diameter Diam. Rotor Principal |
35,33 Ft |
Total
Height Alto Total |
10,1 Ft |
Tail
Rotor Diameter Diam. Rotor de Cola |
5,50 Ft |
