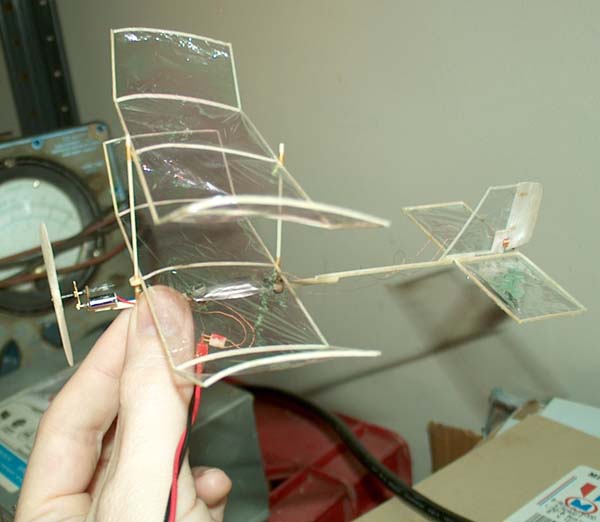

AUW of plane in photos was 1.75g my most current plane weighs just shy of 1.8g.
Estimates from memory from previous measurements
lipoly with plugs and wires 0.7

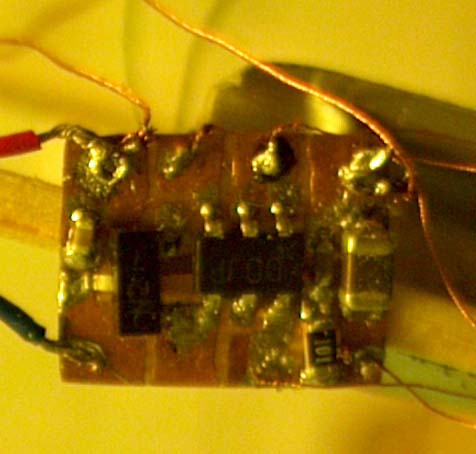

RX 0.6g

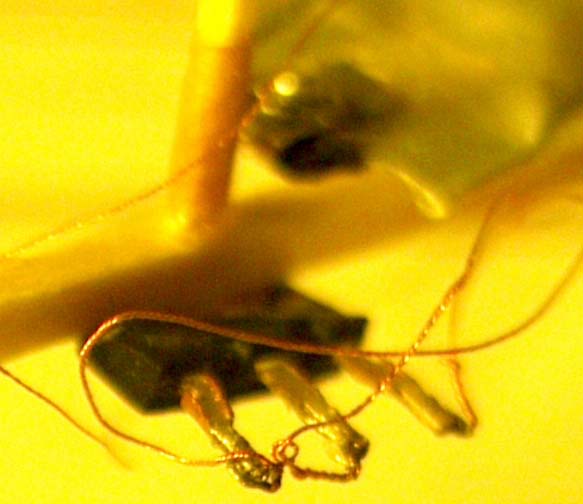

sensor 0.1g

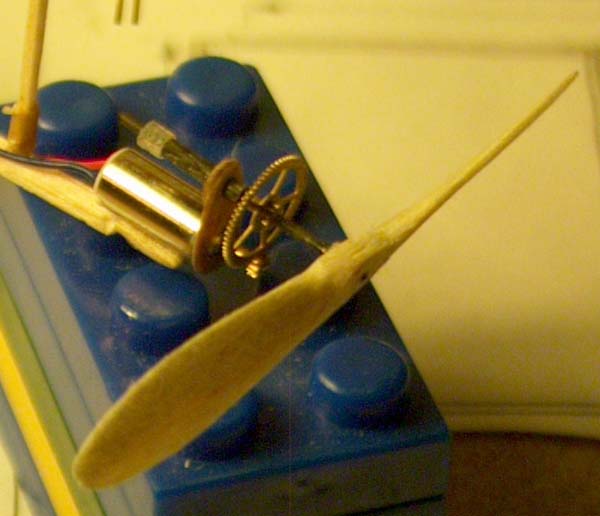

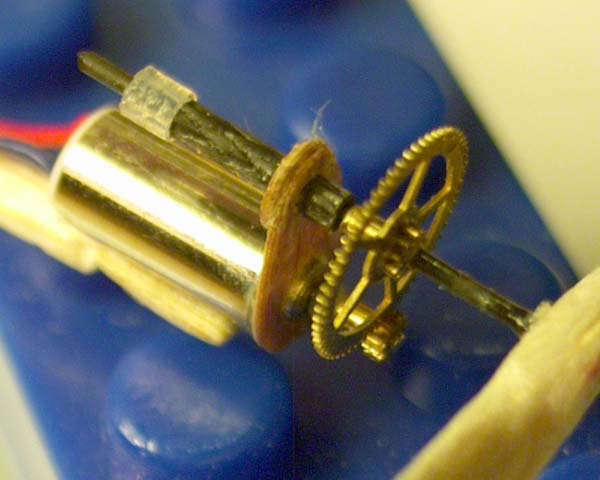

motor gearbox prop 0.5g

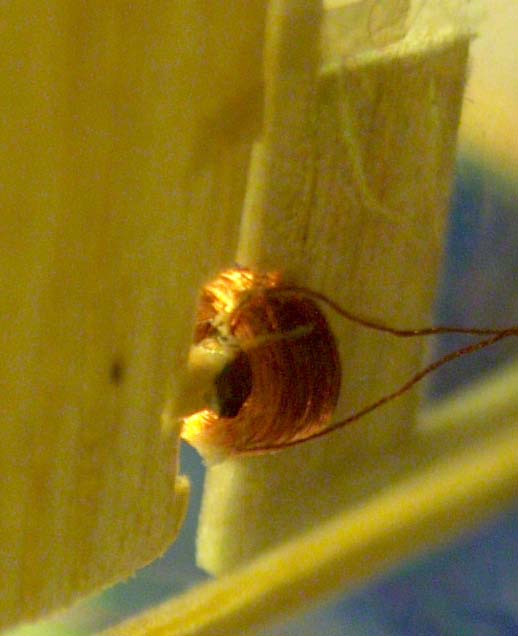

actuator 0.1g
airframe flying surfaces only 0.09g
That's 1.55g so that leaves .2g for the rx plug,motorstick,tailboom, and wingposts.
The actuator probably weighs less than 0.1g and I remember getting 2 different values
for my RX so it may be off and the motor/gearbox/prop weight may be off a bit as well.
My most recent plane weighs in at 1.8g. I guess some
of the components have glue buildup on them plus there
are a few extra parts.
