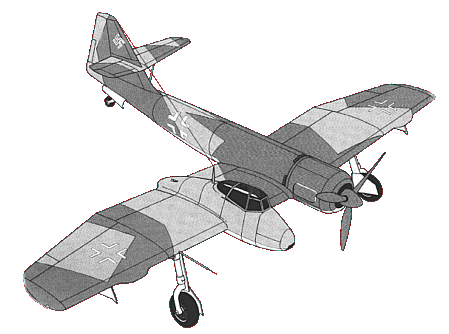

Artwork: "Jet Planes Of The Third Reich. The Secret Projects"

BLOHM und VOSS BV-237

This project is the only asymmetric Blohm-Voss design (except for the BV.141) that has no "P" prefix. Evidently the works on this aircraft were well advanced when the war end put an end to its progress. BV.237 incorporated many features of the similar Schlachtflugzeug projects (P.177, P.179, P.194), but differed with its powerplant which included one turbojet engine hung under the wing center section.

Type: Stuka / Schlachtflugzeug

Engine:
1,700hp BMW 801D 14-cylinder two-row radial

One turbojet of unknown type (probably BMW.003 or HeS.011)

Dimensions:
Wing span:
14.46m

Length:
10.75m

Weight:
Loaded:
6,685kg

Performance:
Maximum Speed:
579kph

Range:
2,000km

Service Ceiling:
-

Armament:
Two 13mm MG151 (both versions)
Two 13mm MG131 (both versions)
Three 30mm MK103 mounted in the center wing (Schlechtflugzeug only)
500kg bombs (Stuka only)


IMAGES
3-view drawing of the basic concept

3-view drawing of the mix-powered version

Side view of a single-seat version

Side view of a two-seat version

Images 1, 3, 4: by Justo Miranda
