SR-III Mod Project
Next   Back   Home
Version "A":  The Basic One
This is the basic version of the SR-III modification program. It utilizes the minimal number of controls to take advantage of the basic circuitry. The add-ons to RCA's (GE property) basic radio are minimal in that only an additional RF preamp, IF Gain control, Antenna switch, Impedance matcher and preselector have been added. All other controls basically utilize adjustments already available as a part of the generic radio's internal circuitry.
Expanded left side view.

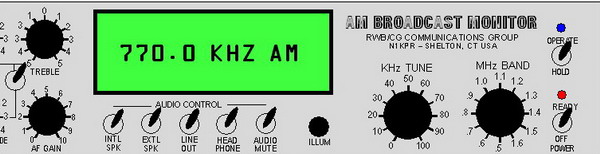

Expanded right side view.
