Add a "Q-Control" to your Preselector's Notch Circuit |
|||||||||||||||||

L vs C for best Qclick |
|||||||||||||||||

Through recent experimentation, and practical usage, it has been determined that there is significant utility in an adjustable Q circuit. Based on the Type-III Preselector circuit, the following tests were conducted: | |||||||||||||||||

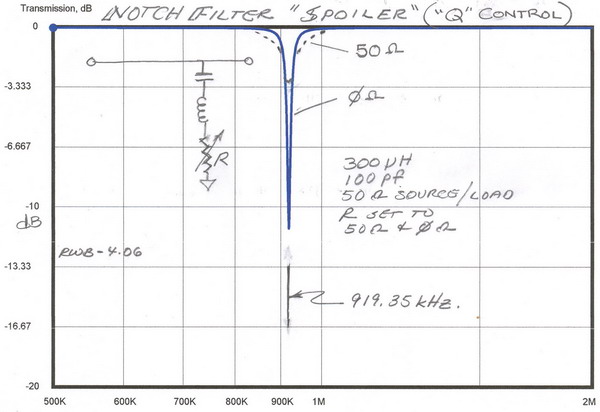

This is the standard Notch (null) series-tuned L/C configuration in a 50 Ohm circuit. The series resistor was adjusted for 0.0 Ohms and 50 Ohms. | |||||||||||||||||

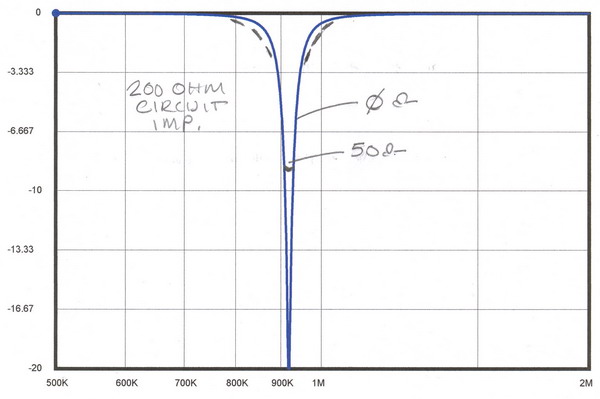

Here is the same circuit with the Notch filter operating within a 200 Ohm loop. The higher impedance was created by using the standard 4:1 transformer, that are used to create the 12 Ohm environment for the Bandpass circuit. The series resistor was adjusted for 0.0 Ohms and 50 Ohms. Note the availability of a deep 20+ dB notch down to a more tunable 8 dB notch. This represents a refinement of the original circuit and is not a necessity. Obviously, tuning such a steep notch without the aid of a "Q-Spoiler" can be somewhat touchy, but with practice becomes (sort of) second nature. Deeper notches can be realized by using an 8:1 (or higher) transformer, but bear in mind that the addition of each transformer causes some amount of signal attenuation. I have built many preselectors without any transformers and, except for the most discriminating user, are just fine for serious DX and weak-signal use. |
|||||||||||||||||

8 Mar 06 | |||||||||||||||||
