16
Inch Armament
This information was provided by the USS WASHINGTON BB56 |
![]() |
Barrels | Nine | |
---|---|---|
Turrets | Three | |
Projectile Weight | Armor Piercing | 2,700 pounds |
Bombardment | 1,900 pounds | |
Muzzle Velocity | Armor Piercing | 2,300 feet/second |
Bombardment | 2,635 feet/second | |
Range
Gun Mount Elevation = 45 degrees |
Armor Piercing | 36,900 yards (21 miles) |
Bombardment | 40,180 yards (22.8 miles) | |
Firing Cycle | 30 seconds | |
Supply Carried | 1,188 AP/HC | |
Crew Per Turret | 2 Officers & 170 Men |
Only the gun barrel extends outside
of the turret.
Inside, behind heavy armor, is a highly complicated assemby of electrical, mechanical, optical and hydraulic systems involved in firing such a gun. |
![]() |
![]() |

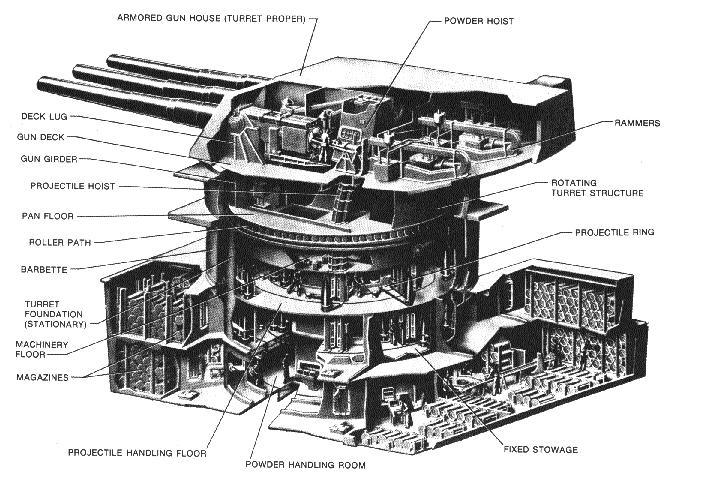

This cut-away of a 16-inch turret with
its hoist, barbette, handling rooms and magazines shows that the entire complex is as tall as a five-story building. |
Click on photo for full view
![]() |
![]() |
![]() |

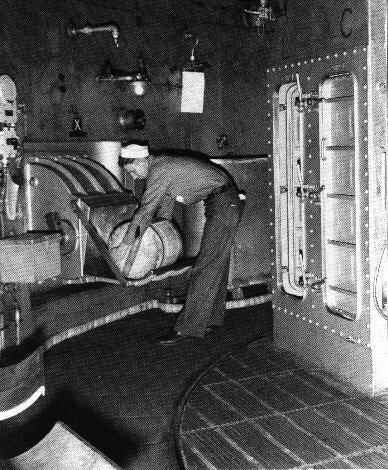

![]() Powder Magazine |
![]() Projectile Magazine |

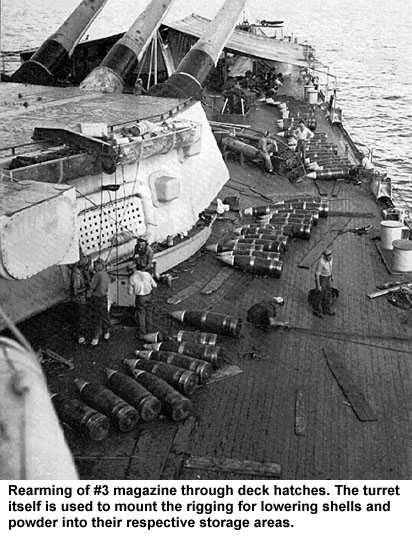

![]() Rearming magazine |
