Toyota Carina Coupe GT-T TwinCam Turbo

Performance:

August 1997, 1290kg, 276hp@5800rpm/1.2-1.25 bar

interval, time, [gear at final speed]
0-50km/h 1.9s [I]
0-80km/h 3.6s [II]
0-100km/h 5.0s [III]
0-120km/h 6.5s [III]
0-160km/h 11.0s [IV]

and for the US viewers pleasure:
0-30mph 1.8 s [I]
0-60mph 4.8s [III]
0-80mph 7.4s [III]
0-100mph 11.1s [IV]

Top speed: 240km/h=7000rpm, will not try above that... With larger tyres and Supra W58 gearbox about 259km/h / 161mph [Japanese market cars have had a governed top speed of 180 km/h / 112mph. Check here how to disable it ;) About 200km/h were quoted in a German book for a Carina GT-T in stock form.]

simulated with RevAnalyzer, part of RevPro package:

   Blue=stock except no cat, [email protected]
   Green=limit of stock turbo, fuel cut removed, [email protected]
   Red=what I have now, [email protected], intercooler, T03 50-trim, 460cc/min injectors.
   Test weights 1290kg for current setup, 10kg less for stock setup
   = almost full tank + me

Braking
Average deceleration from 60mph ~1.1g's
(fade is the problem, not initial performance)

picture from the days of cheaper gas.
Fuel consumption
Average for me 13.3 l/100km, 17.8 mpg
city 11-20 l/100km
highway 8-18 l/100km
economy competition 5.45 l/100km (220km, 59km/h average speed, 100km/h top)
Japanese test 8.9 l/100km, 26.4mpg
German estimate 8-16 l/100km

speedometer error [km/h]:

   indicated	actual
   		(BFG)	(Hankook)
   40		42	44
   60		63	66
   80		81	84
   100		102	106
   120		122	127
   140		141	147
   160		159	166
   180		180	188

file 1, in Sun .au format 7000rpm clutch drop (at 2 seconds from start of the file), then wheelspin ~2 seconds, shifting to 2nd, and 3rd, ends at 125km/h+ (7 seconds from launch, 9 from start of the file)

Engine: 3T-GTEU

Type			Turbocharged inline 4 cylinder
Power			276hp@5800rpm (@1.2-1.25 bar)
			~310hp (@1.4bar)
Torque			363Nm@5200rpm (2nd gear)
			~400Nm (max at higher gears)
Boost			1.4bar (20-21psi)

Displacement		1770 cc
Bore * Stroke		85.0 * 78.0 mm (3.35"*3.07")
Compression ratio	7.8:1 (forged pistons)

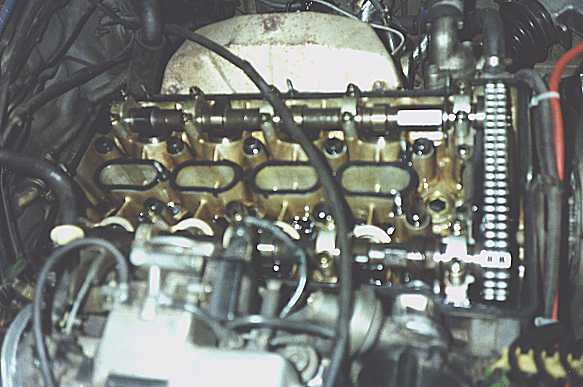

Valvetrain		DOHC (double chain), 2 valves per cylinder
			(intake 44mm, exhaust 38.5mm), included angle ~80�

Camshafts		210� cam duration @0.050" lift,
			9mm valve lift with 0.30mm clearance.
			Lobe centers: intake 128� ATDC, exhaust 112� BTDC
Turbo			Garrett T3, 0.63 A/R, 50-trim, oil cooled,
			integral wastegate (ported, larger than stock).
			(stock: Toyota CT20)

Response 45-trim vs CT20. 50-trim is close to the light blue line.

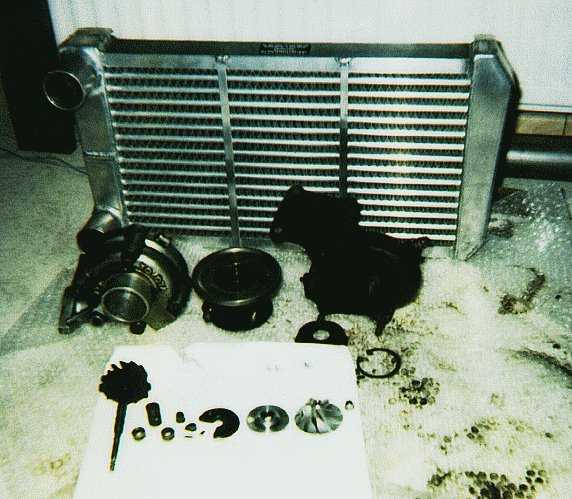

Intercooler		Custom made, 570*300*44mm core, full aluminum.
			(stock: none)
Ignition		Two spark plugs per cylinder, symmetrically placed
			(NGK BP8ES), Nippondenso pointless distributor,
			2 Nippondenso coils
Fuel injection		Nippondenso, L-Jetronic based with
			separate knock control.
			460cc/[email protected] bar injectors, now @4.0bar
			(adjustable regulator). Two electric high pressure
			fuel pumps (K-jetronic) in parallel outside the tank.

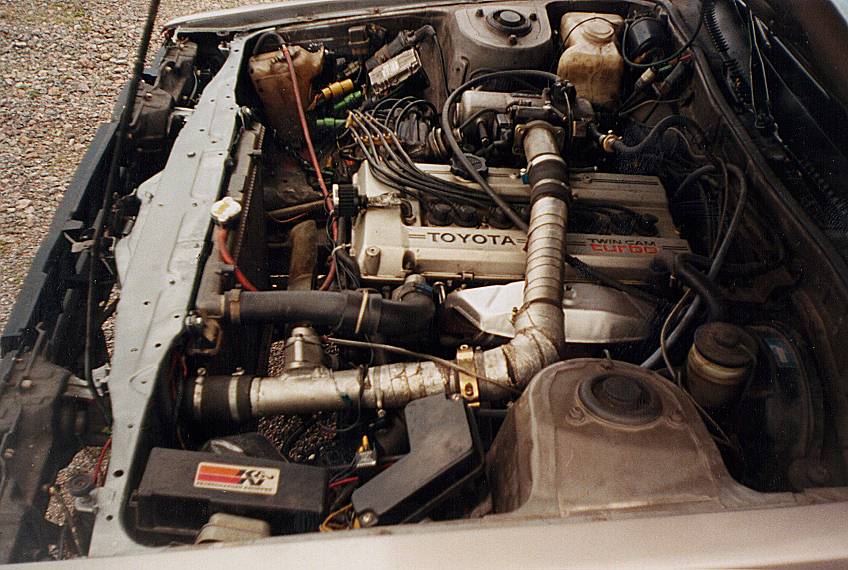

			K&N cone type air filter placed behind left headlights
Redline			7000 rpm, no revlimiter
Lubrication		Trochoid pump, full flow filter, 4.2 l capacity
			Mobil 1 5W50 and Teho filter. Max pressure ~5 bar.
			integral oil cooler (by coolant) at oil filter base
Intake			2" od pipe after turbo, 60mm od pipe between
			turbo intake and air flow meter.
			HKS standard compressor bypass valve.
			Thermo-tec wrap on pipes close to exhaust manifold.

Exhaust			80mm (3 1/8"), Martelius 600212 rear muffler
			with 5" OD / 4" ID tip
			(stock: 3-way cat, 2 mufflers, smaller diameter)
Emissions equipment	Oxygen sensor. Spark control when warming up.

Electrical equipment
12V, 60Ah battery in the trunk [stock 40Ah, in front]
50A alternator
headlamps: 4 rectangular ones, the same as in '80-'81 Celica and Celica Supra.
2*60/55W H4 + 2*55W H1 [stock: coupes 2 headlamps, sedans 4]
These are much better than the 2-lamp setups, even with legal bulbs ;)

Transmission: W55
5 speed manual, oil capacity 2.7l.
Gear ratios (km/h per 1000rpm, with my current tires) (4000rpm/redline 7000rpm speed km/h)

   I	3.566 (8.2) (32.7/57.2)
   II	2.056 (14.2) (56.7/99.2)
   III	1.384 (21.0) (84.2/147.3)
   IV	1     (29.1) (116.5/203.9)
   V	0.850 (34.3) (137.1/239.9)
   rev	-4.091 (-7.1) (-28.5/-49.8)

Tyres & rims

set #1 (daily set for summer)

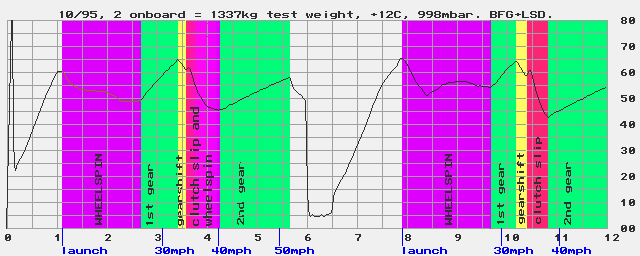

Old launch, at 195hp.

set #2 (winter set)

Chassis [TA60L based]
Rear wheel drive, front engine

front suspension: independent, McPherson, traling links, transverse arms, coil springs (~130lbs/in), Koni adjustable telescopic damper struts (set 1.5 turns tighter), anti-roll bar (22mm). Polyurethane bushings (lower control arms, anti-roll bar links).

rear suspension: independent, semi-trailing arms, anti-roll bar (12mm), coil springs (~230lbs/in), Bilstein telescopic dampers. [the same as in most '82-'86 RWD high-powered Toyotas, like Celica Supra]

Wheel alignment [in degrees]:

   		LF	RF	LR	RR
   Camber	-0.5	-0.5	-2	-2
   Caster	3.5	3.5
   Toe-in	    0-0.09	    0.05-0.08
   KPI		9.6	9.7
   KPI+Camber	9.1	9.2

Type			rack-and-pinion
Turns lock to lock	3.5
Turning circle		10.4 - 11.3 m (handbrake/drop-clutch turns don't count)

Dimensions and weight

			mm
Wheelbase		2500
Tracks (front/rear)	1395/1385
Length			4390
Width			1650
Height			1340 [stock 1365]
Ground clearance	  80, winter 92 [stock 155]
Curb weight		1230 kg (2709 lbs)
weight distrib. (f/r)	48.0%/52.0%
(some mods: no oil pan protection, soundproofing material added,
 battery moved to trunk, intercooler added. Exhaust ruins ground clearance.)

Future mods affecting weight:
• ? fiberglass hood, aka bonnet for some of you (later)

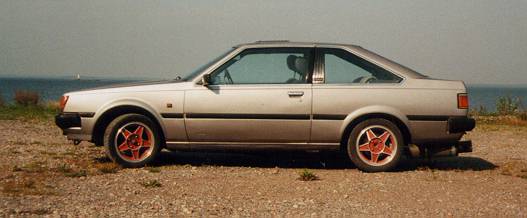

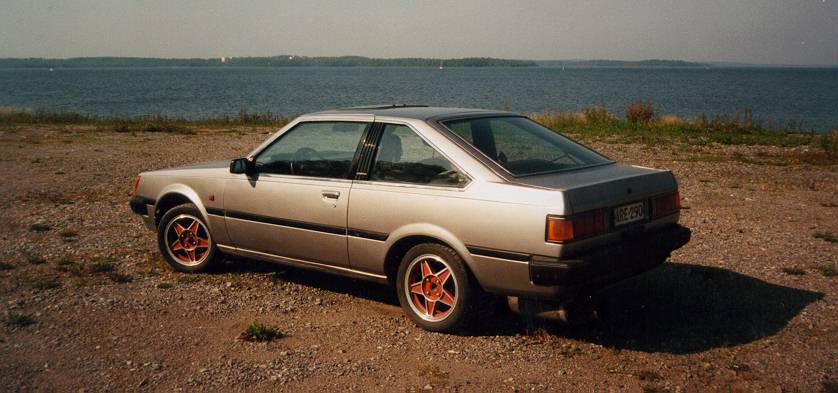

(1998, Tampere, Finland - not quite stock...) 32000 FIM
