Toyota Celica Twincam Turbo

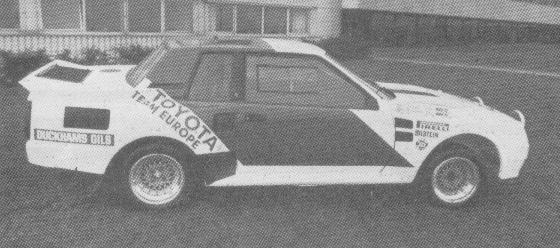

Toyota Celica Twincam Turbo of Juha Kankkunen in 1985 Hong Kong - Beijing rally


Introduced 1983 in 1000 Lakes Rally, Finland.

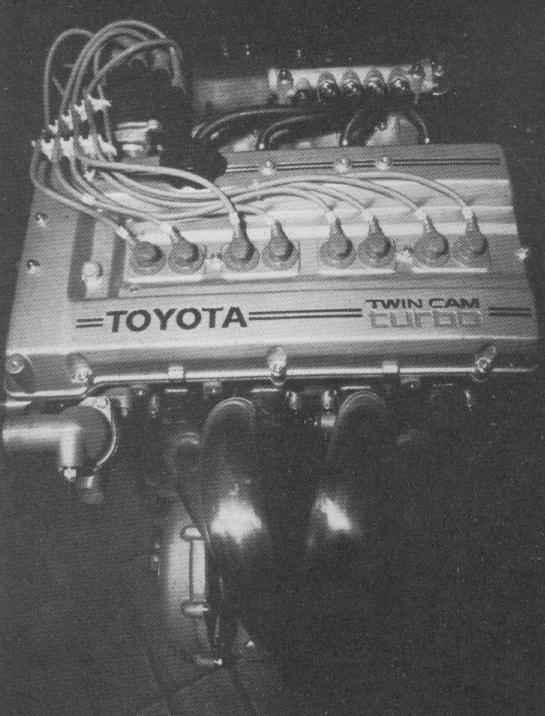

Engine:		modified 4T-GT, EFI
Max power	360-390hp@7500-8000rpm
Max torque	481Nm@5500rpm
comp. ratio	7.1:1-8.0:1
dry-sump lubrication

later models with KKK turbo (K27)

front suspension McPherson
rear rigid axle (at least 1983)
Pirelli tyres

length		4250mm
width		1785mm
height		1310mm
wheelbase	2500mm
tracks f/r	1410/1410mm
weight		1020-1100kg

Wins in WRC Group B:

Ivory Coast 1983 (Waldegard) Safari 1984 (Waldegard) Safari 1985 (Kankkunen) Ivory Coast 1985 (Kankkunen) Safari 1986 (Waldegard) Ivory Coast 1986 (Waldegard)

Other top 3 results in WRC:

3. Ivory Coast 1983 (Eklund) 3. RAC 1984 (Eklund) 2. Safari 1985 (Waldegard) 2. Ivory Coast 1985 (Waldegard) 2. Safari 1986 (Torph) 2. Ivory Coast 1986 (Torph) 3. Ivory Coast 1986 (Weber)

Other top 10 results in WRC:

6. 1000 Lakes 1983 (Kankkunen) 7. RAC 1983 (Kankkunen) 5. New Zealand 1984 (Waldegard) 7. 1000 Lakes 1985 (Waldegard) 5. RAC 1985 (Kankkunen) 4. Safari 1985 (Weber) 4. Ivory Coast 1986 (Ulyate) 4. Olympus 1986 (Torph) 5. Olympus 1986 (Waldegard) Also, Middle East Rally championship in 1986, 1987 and 1988, all won by Mohammed Bin Sulayem.
