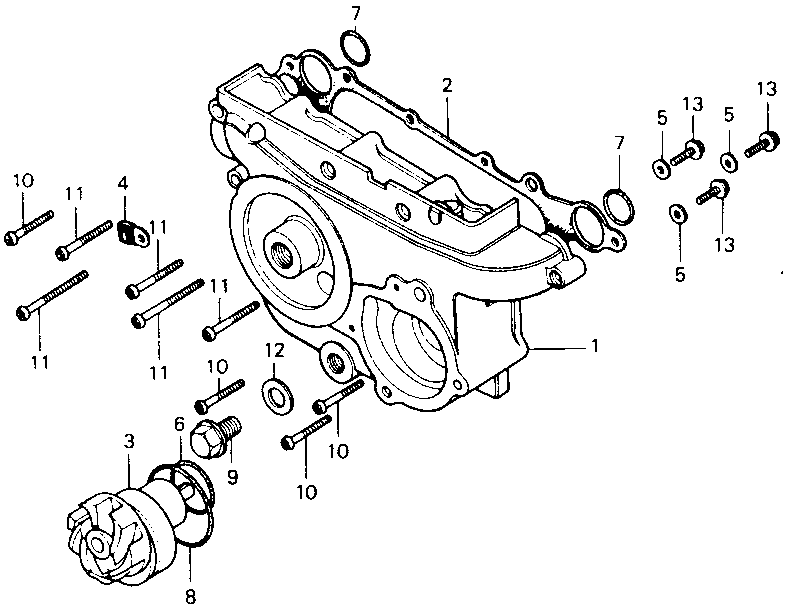

| Ref.No | Partnumber | Description | Reqd. |
| 1 | 11360-371-000 | COVER CORP., TRANSMISSION | 1 |
| 2 | 11391-371-000 | GASKET, TRANSMISSION COVER | 1 |
| 3 | 19200-371-000 | PUMP COMP., WATER | 1 |
| 4 | 32111-323-000 | CLAMPER, CORD | 1 |
| 5 | 90441-028-010 | WASHER, SEALING, 6MM | 3 |
| 6 | 91303-283-000 | O-RING, 37.2x2.3 | 1 |
| 7 | 91312-371-003 | 0-RING 23x2.1 | 2 |
| 8 | 91356-706-000 | 0-RING 56x2 4 | 1 |
| 9 | 92800-14000 | BOLT , DRAIN PLUG, 14MM | 1 |
| 10 | 93500-06035 | SCREW, PAN 6x35 | 4 |
| 11 | 93500-06055 | SCREW, PAN, 6x55 | 5 |
| 12 | 94109-14000 | WASHER, DRAIN PLUG, 14MM | 1 |
| 13 | 95700-06018-00 | BOLT, FLANGE, 6x18 | 3 |
There is officially no waterpump overhaulkit available for the
GL1000/GL1100.
But you can use the CX500 (old model) kit, this pump has the same seals, pump is
different.
No bearings included, you can use Timken/SFK or whatever is available, take
the measurements
of the bearings from the sides or take them to your hardware store to look for
interchangeable ones.
Honda partnumber: 19217 - 611 - 000
