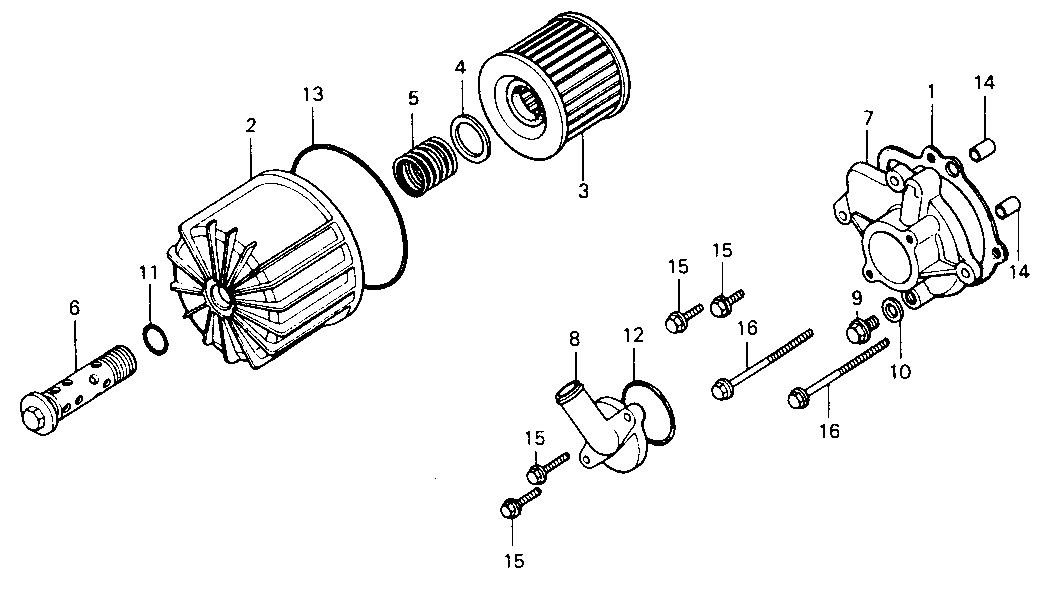

Ref.No |
Partnumber |
Description |
Reqd. |
| 1 | 11396-371-000 | GASKET, WATER PUMP | 1 |
| 2 | 15411-371-000 | CASE, OIL FILTER | 1 |
| 3 | 15412-300-024 | ELEMENT, OIL FILTER (TOKYO ROKI) | 1 |
| 4 | 15414-300-000 | SEAT, OIL FILTER SPRING | 1 |
| 5 | 15415-300-000 | SPRING, OIL FILTER ELEMENT SET | 1 |
| 6 | 15420-300-020 | BOLT, OIL FILTER CENTER | 1 |
| 7 | 19221-371-000 | COVER COMP., WATER PUMP | 1 |
| 8 | 19225-371-000 | CAP, WATER PUMP | 1 |
| 9 | 90007-371-004 | BOLT, FLANGE, 1Ox12 | 1 |
| 10 | 90481-001-020 | WASHER, 10.2MM | 1 |
| 11 | 91302-020-000 | O-RING 15x2.5 | 1 |
| 12 | 91305-216-000 | O-RING, 46x2 | 1 |
| 13 | 91316-300-005 | O-RING, 89x4.5 | 1 |
| 14 | 94301-08140 | PIN A, DOWEL, 8x14 | 2 |
| 15 | 95700-06022-020 | BOLT, FLANGE, 6x22 | 4 |
| 16 | 95700-06080-00 | BOLT, FLANGE, 6x6O | 2 |
