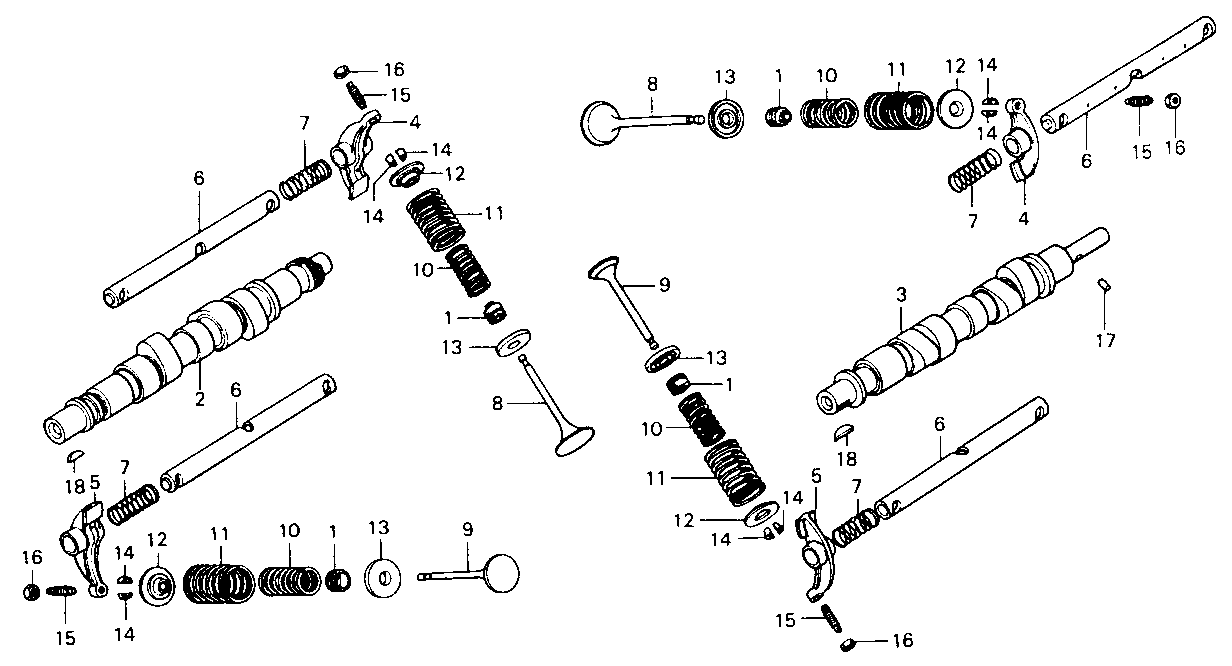

Camshaft - valve
Ref.No |
Partnumber | Description | Reqd. |
| 1 | 12209-300-003 | SEAL, VALVE STEM | 8 |
| 2 | 14110-431-000 | CAMSHAFT COMP., R. | 1 |
| 3 | 14211-431-000 | CAMSHAFT, L | 1 |
| 4 | 14611-371-000 | ARM A, ROCKRE | 4 |
| 5 | 14621-371-000 | ARM B. ROCKER | 4 |
| 6 | 14631-371-000 | SHAFT, ROCKER ARM | 4 |
| 7 | 14642-371-000 | SPRING, ROCKER ARM SIDE | 8 |
| 8 | 14711-371-000 | VALVE , IN | 4 |
| 9 | 14721-371-000 | VALVE, EX | 4 |
| 10 | 14751-611-003 | SPRING, VALVE ER INNER (HATSUJU) | 8 |
| 11 | 14761-611-003 | SPRING, VALVE OUTER,(NIPPATSU) | 8 |
| 12 | 14771-551-020 | RETAINER, VALVE SPRING | 8 |
| 13 | 14775-300-000 | SEAT, VALVE SPRING | 8 |
| 14 | 14781-551-000 | COTTER , VALVE | 16 |
| 15 | 90012-300-000 | SCREW, TAPPET ADJUSTING | 8 |
| 16 | 90205-300-000 | NUT, TAPPET ADJUSTING | 8 |
| 17 | 90701-283-000 | PIN, KNOCK, 3X6.8 | 1 |
| 18 | 94401-25140 | KEY, WOODRUFF, 25X14 | 2 |
