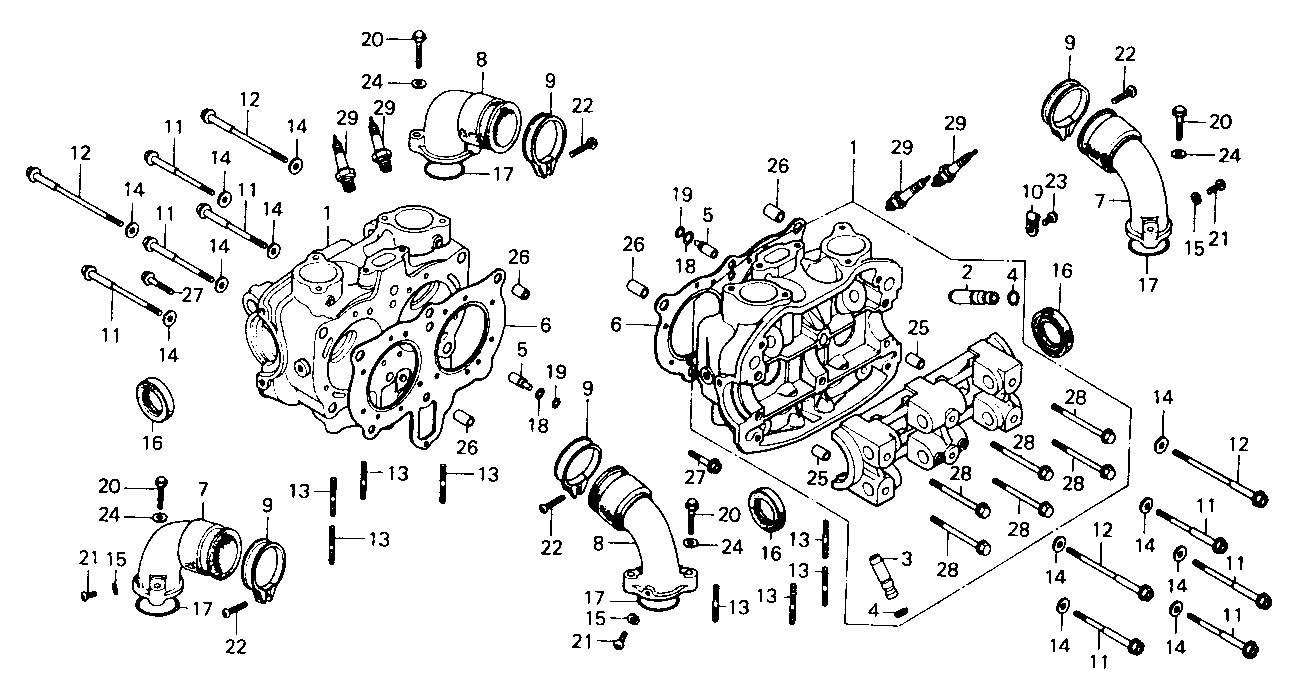

Cilinder head.
| Ref.No | Partnumber | Description | Reqd. |
1 |
12200-371-010 | HEAD ASSY., CYLINDER | 2 |
| 2 | 12204-371-305 | GUIDE, IN. VALVE | 3 |
| 3 | 12205-371-305 | GUIDE, EX. VALVE | 3 |
| 4 | 12211-250-310 |
CLIP, VALVE GUIDE | 8 |
| 5 | 12238-371-000 | ORIFICE, OIL CONTROL | 2 |
| 6 | 12251-371-003 | GASKET, CYLINDER HEAD | 2 |
| 7 | 17110-431-000 | MANIFOLD A, IN. | 2 |
| 8 | 17120-431-000 | MANIFOLD B IN. | 2 |
| 9 | 17255-371-000 | BAND, IN. MANIFOLD | 4 |
| 10 | 32111-323-000 | CLAMPER, CORD | 1 |
| 11 | 90001-371-003 | BOLT, FLANGE, 10x90 | 8 |
| 12 | 90002-371-003 | BOLT, FLANGE, 10x115 | 4 |
| 13 | 90035-371-000 | BOLT, STUD, 8x43 | 8 |
| 14 | 90438-634-000 | WASHER, 21x11x2.3 | 12 |
| 15 | 90452-323-000 | WASHER, THRUST, 5MM | 4 |
| 16 | 91209-371-003 | OIL SEAL, 27x43x9 | 3 |
| 17 | 91301-371-003 | O-RING, 40x2.6 | 4 |
| 18 | 91305-371-003 | O-RING, 6.5x1.5 | 2 |
| 19 | 91308-371-003 | O-RING, 4.1x1.5 | 2 |
| 20 | 92500-06032-02 | BOLT. CAP, 6x32 | 8 |
| 21 | 93500-05008-OA | SCREW, PAN, 5x8 | 4 |
| 22 | 93500-05020-OG | SCREW, PAN, 5x20 | 4 |
| 23 | 93500-06008 | SCREW, PAN, 6x8 | 1 |
| 24 | 94101-0600 | WASHER, PLAIN, 6MM | 8 |
| 25 | 94301-1016 | PINA, DOWEL, 1Ox16 | 4 |
| 26 | 94301-12200 |
PIN A, DOWEL, 12x20 | 4 |
| 27 | 95700-06020-00 | BOLT, FLANGE, 6x28 | 2 |
| 28 | 95700-08070-00 | BOLT, FLANGE, 8x70 | 12 |
| 29 | 98069-58717 98069-58727 |
PLUG, SPARK (D-8EA
NGK) PLUG, SPARK (X24ES-UND) |
4 4 |
