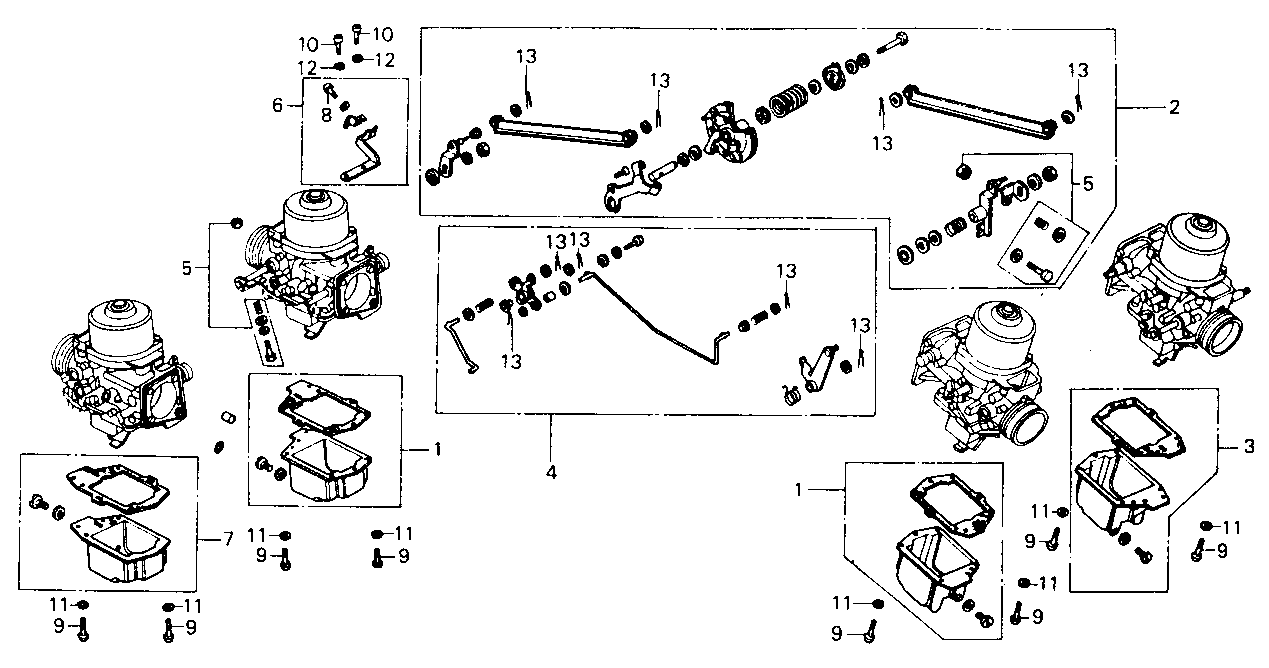

Carburetor (components parts 2).
Ref.No
|
Partnumber
|
Description
|
Reqd.
|
| 1 |
16015-371-004 |
CHAMBER SET A, FLOAT |
2 |
| 2 |
16017-371-771 |
LINK SET |
1 |
| 3 |
16023-371-001 |
CHAMBER SET B, FLOAT |
1 |
| 4 |
16025-371-771 |
ROD SET , CHOKE |
1 |
| 5 |
16028-371-004 |
SCREW SET B |
4 |
| 6 |
16035-371-004 |
PLATE SET, STAY |
1 |
| 7 |
16045-371-001 |
CHAMBER SET C, FLOAT |
1 |
| 8 |
93500-04010-OA |
SCREW, PAN, 4x10 |
1 |
| 9 |
93500-04014-OA |
SCREW, PAN, 4x14 |
16 |
| 10 |
93500-05012-OA |
SCREW, PAN, 5x12 |
2 |
| 11 |
94111-04000 |
WASHER, SPRING, 4MM |
16 |
| 12 |
94111-05000 |
WASHER, SPRING, 5MM |
2 |
| 13 |
94201-10080 |
PIN, SPLIT, 1.0x9 |
9 |
