project #11: MCE32064
320 scanpoints plus 64 potentiometers consolle MIDI encoder

This unit is available thru www.midiboutique.com
dfm

Description:

Here is it: the biggest MIDI encoder I've ever built. It is capable to scan up to 320 scanpoints (keys, switches etc.) plus up to 64 potentiometers. Can be used for variety of applications. It is just a question of needs and fantasy...

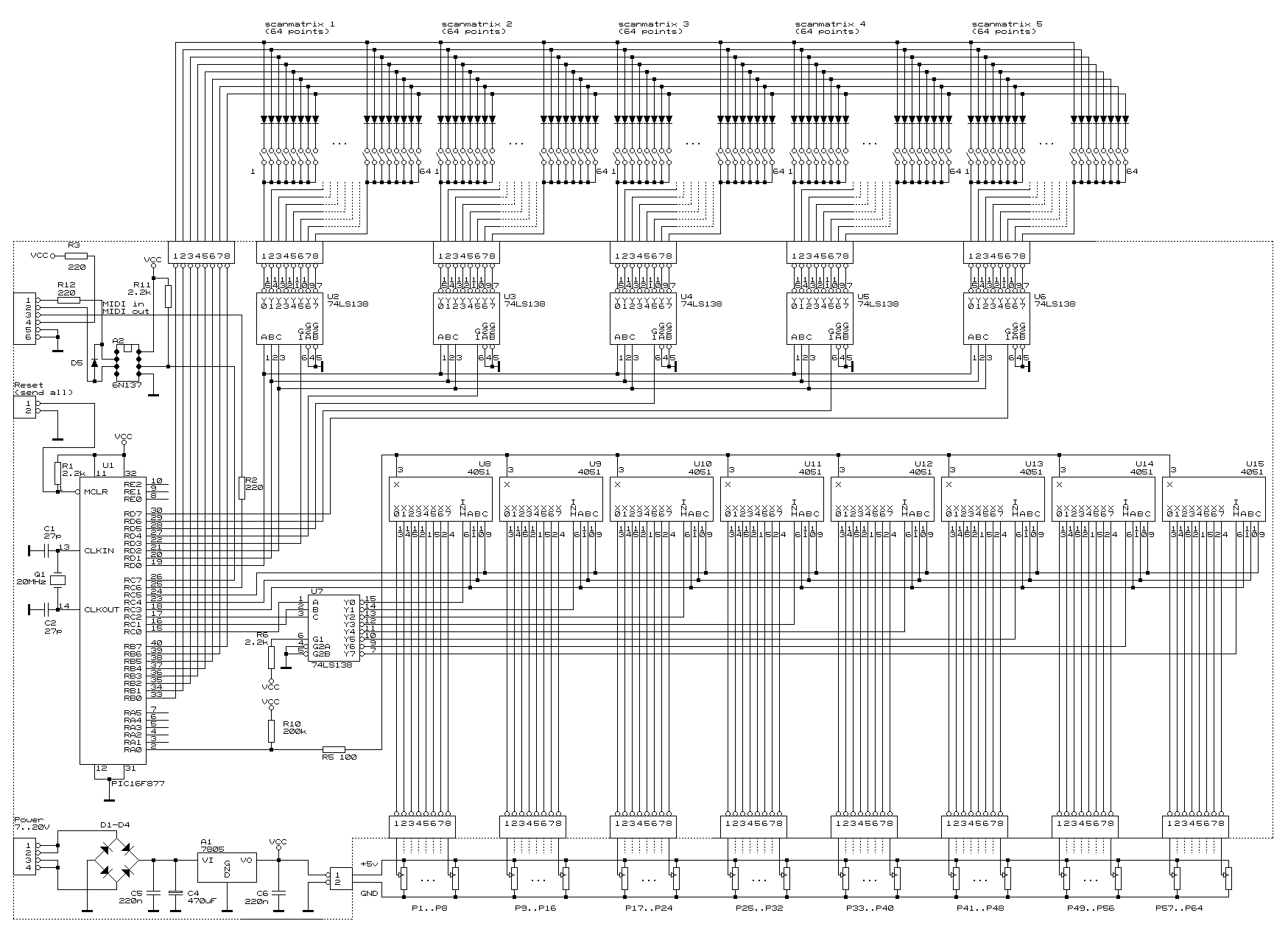

Schematic:
(click on schematic to get picture enlarged)

Embedded software:

The firmware is fully customer - defined. The first application that it will be used in, is B4ce encoder. Here is an example of how the customer-defined functions assignment table should look, thanks to Nui (pdf format).

Ordering:

Details about how to order pre-programmed chip or ready made unit can be found here.
The package includes mce32064 unit and User Manual with fully documented schematic and MIDI Implementation Table,and doesn't include key contacts, diodes and potentiomeners.
