AVIATION

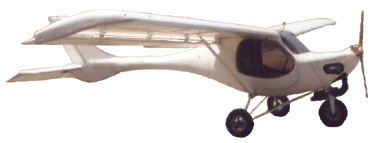

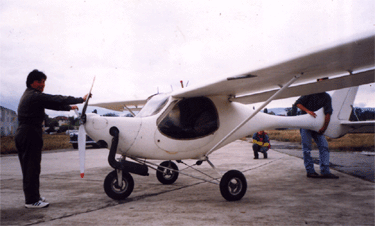

Design and Manufacturing of Very Light Airplanes Kits ( VLA Kits ) build-up
by composite materials ( Fibre glass & Carbon )

Performance of Mono Place Very Light Airplane

- Wings Area                   8.00 m2
- Wings outspread            8.40 m
- Length                           5.40 m
- Height                            1.85 m
- Weight ( empty )             120 kg
- Weight ( Max )               230 kg
- V max                            120 km/h
- V max max                     150 km/h
- V min                              53 km/h
- V landing                         48 km/h
- Rate of climb                    5 m/sec
- Admissible Overloading    +4, -2
- Engine Power                   30 HP



Performance of Double Place Very Light Airplane

- Wings Area                            10.60 m2
- Wings outspread                      9.10 m
- Length                                     5.40 m
- Height                                     1.85 m
- Weight ( empty )                      180 kg
- Weight ( Max )                        450 kg
- V max                                    150 km/h
- V max max                             180 km/h
- V min                                       61 km/h
- V landing, 30° ( 1 pilot )           42 km/h
- V landing, 30° ( Weight Max)   55 km/h
- Rate of climb                            6.5 m/s
- Admissible Overloading             +4, -2
- Engine Power ( ROTAX 503 )    52 hp



         Price per Kit - CONTACT
