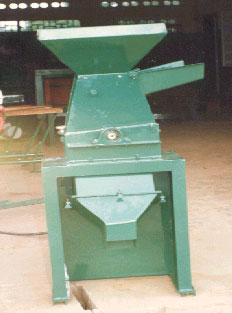

Grand Modele (Large Model)
|
Petit Modele (Small Model) |
-
Broie
tous céréales : maïs, sorgho, mil, blé, riz,...
-
Broie les
tubércules sèches ou humides
-
Broie les noix palmistes pour l’extraction de l’huile palmiste
-
Broie le gingembre pour l’extraction du jus
-
Grind
all cereals (corn, sorghum, millet, wheat, rice, etc)
-
Grind
dried or fresh tubers
-
Grind
palm nuts for the extraction of palm oil
-
Grind
ginger root for the extraction of juice
|
| Grand
Modele |
| Caracteristiques
Techniques:
|
| Versions |
Thermique |
Electrique |
| Dimensions (L x l x H) |
60 cm x 40 cm x 144 cm |
60 cm x 40 cm x 144 cm |
| Poids |
75 kg |
90 kg |
| Alimentation |
Tremie avec
trappe de reglage de debit |
| Vitesse de Rotation |
7200 tr/min |
6000 tr/min |
| Motorisation |
Monocylindre essence |
Courant force motrice |
| Puissance Absorbee |
17 CV a 3600 tr/min |
5,5 CV |
| Entrainement |
Par courroie |
Par courroie |
| Grilles |
Diametres 0.8
- 1 - 3 |
Diametres 0.8
- 1 - 3 |
| Marteaux |
8 marteaux mobiles reversibles |
8 marteaux mobiles reversibles |
| Equipements |
Lanceur de demarrage |
Coffret electrique |
| Performances: |
| 300 à 1000 kg/heure selon finesse et produit |
| Large
Model |
| Technical Characteristics:
|
| Versions |
Gas |
Electric |
| Dimensions (L x W x H) |
60 cm x 40 cm x 144 cm |
60 cm x 40 cm x 144 cm |
| Weight |
75 kg |
90 kg |
| Supply |
Feeder bin with a flow
regulation trap |
| Rotation Speed |
7200 rpm |
6000 rpm |
| Motor |
Mono-cylinder gas |
Electromotive motor |
| Absorbed Power |
17 HP at 3600 rpm |
5.5 HP |
| Drive |
Belt |
Belt |
| Bars |
Diameters 0.8
- 1 - 3 |
Diameters 0.8
- 1 - 3 |
| Hammers |
8 moveable, reversible hammers |
8 moveable, reversible hammers |
| Equipment |
Starter |
Electric box |
| Performance: |
| 300 - 1000 kg/hour depending on the size of
grain and the product |
| Petit
Modele |
| Caracteristiques
Techniques:
|
| Versions |
Thermique |
Electrique |
| Dimensions (L x l x H) |
60 cm x 70 cm x 105 cm |
60 cm x 70 cm x 105 cm |
| Poids |
75 kg |
90 kg |
| Alimentation |
Tremie avec
trappe de reglage de debit |
| Vitesse de Rotation |
3600 tr/min |
3000 tr/min |
| Motorisation |
Monocylindre essence |
220 ou 380 Volts |
| Puissance Absorbee |
13 CV a 3600 tr/min |
5,5 CV |
| Entrainement |
Direct |
Direct |
| Grilles |
Diametres 0.8
- 1 - 3 |
Diametres 0.8
- 1 - 3 |
| Marteaux |
6 marteaux mobiles reversibles |
6 marteaux mobiles reversibles |
| Equipements |
Lanceur de demarrage |
Coffret electrique |
| Performances: |
| 150 a 500 kg/heure selon finesse et produit |
| Small
Model |
| Technical Characteristics:
|
| Versions |
Gas |
Electrique |
| Dimensions (L x W x H) |
60 cm x 70 cm x 105 cm |
60 cm x 70 cm x 105 cm |
| Weight |
75 kg |
90 kg |
| Supply |
Feeder bin with a flow
regulation trap |
| Rotation Speed |
3600 rpm |
3000 rpm |
| Motor |
Monocylinder gas |
220 or 380 Volts |
| Absorbed Power |
13 HP at 3600 rpm |
5.5 HP |
| Drive |
Direct |
Direct |
| Bars |
Diameters 0.8
- 1 - 3 |
Diameters 0.8
- 1 - 3 |
| Hammers |
6 moveable, reversible hammers |
6 moveable, reversible hammers |
| Equipment |
Starter |
Electric box |
| Performance: |
| 150 - 500 kg/hour depending on the size of
grain and the product |
