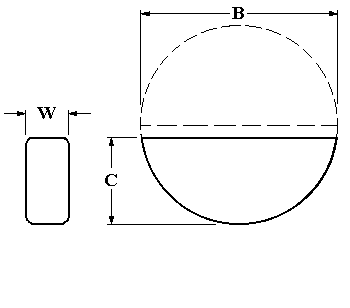

| KEY NUMBER | B Diameter | C Height | W Width |
| 202 | - | - | - |
| 202.5 | 0.3125 | 0.1400 | 0.0625 |
| 302.5 | 0.3125 | 0.1400 | 0.0938 |
| 203 | 0.3750 | 0.1720 | 0.0625 |
| 303 | 0.3750 | 0.1720 | 0.0938 |
| 403 | 0.3750 | 0.1720 | 0.1250 |
| 204 | 0.5000 | 0.2030 | 0.0625 |
| 304 | 0.5000 | 0.2030 | 0.0938 |
| 404 | 0.5000 | 0.2030 | 0.1250 |
| 305 | 0.6250 | 0.25000 | 0.93750 |
| 405 | 0.6250 | 0.25000 | 0.12500 |
| 505 | 0.6250 | 0.25000 | 0.15620 |
| 605 | 0.6250 | 0.2500 | 0.1875 |
| 406 | 0.7500 | 0.3130 | 0.1250 |
| 506 | 0.7500 | 0.3130 | 0.1562 |
| 606 | 0.7500 | 0.3130 | 0.1875 |
| 806 | 0.7500 | 0.3130 | 0.2500 |
| 507 | 0.8750 | 0.3750 | 0.1562 |
| 607 | 0.8750 | 0.3750 | 0.1875 |
| 707 | 0.8750 | 0.3750 | 0.2188 |
| 807 | 0.8750 | 0.3750 | 0.2500 |
| 608 | 1.0000 | 0.4380 | 0.1875 |
| 708 | 1.0000 | 0.4380 | 0.2188 |
| 808 | 1.0000 | 0.4380 | 0.2500 |
| 1008 | 1.0000 | 0.4380 | 0.3125 |
| 1208 | 1.0000 | 0.4380 | 0.3750 |
| 609 | 1.1250 | 0.4840 | 0.1875 |
| 709 | 1.1250 | 0.4840 | 0.2188 |
| 809 | 1.1250 | 0.4840 | 0.2500 |
| 1009 | 1.1250 | 0.4840 | 0.3125 |
| 610 | 1.2500 | 0.5470 | 0.1875 |
| 710 | 1.2500 | 0.5470 | 0.2188 |
| 810 | 1.2500 | 0.5470 | 0.2500 |
| 1010 | 1.2500 | 0.5470 | 0.3125 |
| 1210 | 1.2500 | 0.5470 | 0.3750 |
| 811 | 1.3750 | 0.5940 | 0.2500 |
| 1011 | 1.375 | 0.5940 | 0.3125 |
| 1211 | 1.3750 | 0.5940 | 0.3750 |
| 1112 | 1.5000 | 0.6410 | 0.2500 |
| 1012 | 1.5000 | 0.6410 | 0.3125 |
| 1212 | 1.5000 | 0.6410 | 0.3750 |
