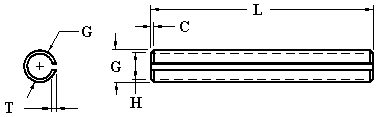

Spring Pins (Roll Pins, Split Pins) SPRING PINS (Roll Nominal Size or BasicPin Diameter G H C T RecommendedHole Size Double Shear Lbs. Pin Diameter Chamfer Diameter Chamfer Length WallThickness Max Min Max Max Min Basic Max Min SAE 1070-1095 Steel & 420 SS 300 SeriesStainless 1/16 .062 0.069 0.066 0.059 0.028 0.007 0.012 0.065 0.062 430 250 5/64 .078 0.086 0.083 0.075 0.032 0.008 0.018 0.081 0.078 800 460 3/32 .094 0.103 0.099 0.091 0.038 0.008 0.022 0.097 0.094 1150 670 1/8 .125 0.135 0.131 0.122 0.044 0.008 0.028 0.129 0.125 1875 1090 5/32 .156 0.167 0.162 0.151 0.048 0.010 0.032 0.160 0.156 2750 1600 3/16 .188 0.199 0.194 0.182 0.055 0.011 0.040 0.192 0.187 4150 2425 7/32 .219 0.232 0.226 0.214 0.065 0.011 0.048 0.224 0.219 5850 3400 1/4 .250 0.264 0.258 0.245 0.068 0.012 0.048 0.256 0.250 7050 4100 5/16 .312 0.330 0.321 0.306 0.080 0.014 0.062 0.318 0.312 10800 6300 3/8 .375 0.395 0.385 0.368 0.095 0.016 0.077 0.382 0.375 16300 9500 7/16 .438 0.459 0.448 0.430 0.095 0.017 0.077 0.445 0.437 19800 11500 1/2 .500 0.524 0.513 0.485 0.110 0.025 0.094 0.510 0.500 27100 15800
Nominal Size or BasicPin Diameter
