Solid Rivet

AMERICAN STANDARD SMALL SOLID RIVETS
ANSI/ASME Standard #ASME B18.1.1-1972 (R1995)

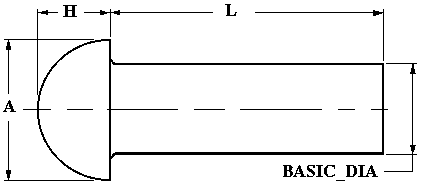

Button Head Rivet

BASIC
DIAMETER A
Head Diameter H
Head Height
.5 0.8750 0.3750
.625 1.0940 0.4690
.75 1.3120 0.5620
.875 1.5310 0.6560
1 1.7500 0.7500
1.125 1.9690 0.8440
1.25 2.1880 0.9380
1.375 2.4060 1.0310
1.5 2.6250 1.1250
1.625 2.8440 1.2190
1.75 3.0620 1.3120

High Button Head (Acorn) Rivet

BASIC
Diameter A
Head Diameter H
Head Height
.5 0.7810 0.5000
.625 0.9690 0.5940
.75 1.1560 0.6880
.875 1.3440 0.7810
1 1.5310 0.8750
1.125 1.7190 1.9690
1.25 1.9060 1.0620
1.375 2.0940 1.1560
1.5 2.2810 1.2500
1.625 2.4690 1.3440
1.75 2.6560 1.4380

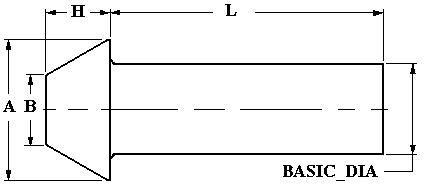

Cone Head Rivet

BASIC
DIAMETER A
Major Head Diameter B
Minor Head Diameter H
Head Height
.5 0.8750 0.4690 0.4380
.625 1.0940 0.5860 0.5470
.75 1.3120 0.7030 0.6560
.875 1.5310 0.8200 0.7660
1 1.7500 0.9380 0.8750
1.125 1.9690 1.0550 0.9840
1.25 2.1880 1.1720 1.0940
1.375 2.4060 1.2900 1.2030
1.5 2.6250 1.4060 1.3120
1.625 2.8440 1.5240 1.4220
1.75 3.0620 1.6410 1.5310

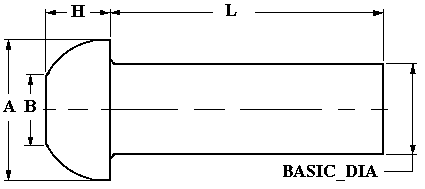

Pan Head Rivet

BASIC
DIAMETER A
Major Head Diameter B
Minor Head Diameter H
Head Height
.5 0.8000 0.5000 0.3500
.625 1.0000 0.6250 0.4380
.75 1.2000 0.7500 0.5250
.875 1.4000 0.8750 0.6120
1 1.6000 1.0000 0.7000
1.125 1.8000 1.1250 0.7880
1.25 2.0000 1.2500 0.8750
1.375 2.2000 1.3750 0.9620
1.5 2.4000 1.5000 1.0500
1.625 2.6000 1.6250 1.1380
1.75 2.8000 1.7500 1.2250

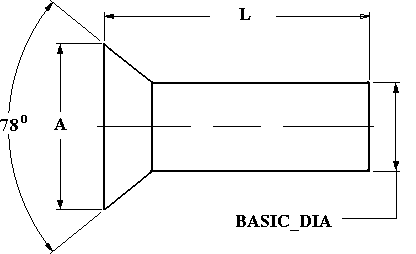

Flat Countersunk Head Rivet

BASIC
DIAMETER A
Head Diameter
.5 0.9360
.625 1.1940
.75 1.4210
.875 1.6470
1 1.8730
1.125 2.1140
1.25 2.3400
1.375 2.5670
1.5 2.7930
1.625 3.0190
1.75 3.2620

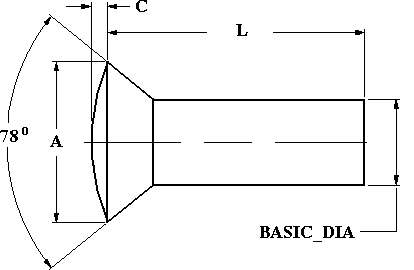

Oval Countersunk Head Rivet

BASIC
DIAMETER A
Head Diameter C
Crown Height
.5 0.9360 0.0950
.625 1.1940 0.1190
.75 1.4210 0.1420
.875 1.6470 0.1660
1 1.8730 0.1900
1.125 2.1140 0.2140
1.25 2.3400 0.2380
1.375 2.5670 0.2610
1.5 2.7930 0.2850
1.625 3.0190 0.3090
1.75 3.2620 0.3320

BASIC DIAMETER	A Head Diameter	H Head Height
.5	0.8750	0.3750
.625	1.0940	0.4690
.75	1.3120	0.5620
.875	1.5310	0.6560
1	1.7500	0.7500
1.125	1.9690	0.8440
1.25	2.1880	0.9380
1.375	2.4060	1.0310
1.5	2.6250	1.1250
1.625	2.8440	1.2190
1.75	3.0620	1.3120

BASIC DIAMETER	A Major Head Diameter	B Minor Head Diameter	H Head Height
.5	0.8750	0.4690	0.4380
.625	1.0940	0.5860	0.5470
.75	1.3120	0.7030	0.6560
.875	1.5310	0.8200	0.7660
1	1.7500	0.9380	0.8750
1.125	1.9690	1.0550	0.9840
1.25	2.1880	1.1720	1.0940
1.375	2.4060	1.2900	1.2030
1.5	2.6250	1.4060	1.3120
1.625	2.8440	1.5240	1.4220
1.75	3.0620	1.6410	1.5310

BASIC DIAMETER	A Head Diameter
.5	0.9360
.625	1.1940
.75	1.4210
.875	1.6470
1	1.8730
1.125	2.1140
1.25	2.3400
1.375	2.5670
1.5	2.7930
1.625	3.0190
1.75	3.2620

BASIC DIAMETER	A Head Diameter	C Crown Height
.5	0.9360	0.0950
.625	1.1940	0.1190
.75	1.4210	0.1420
.875	1.6470	0.1660
1	1.8730	0.1900
1.125	2.1140	0.2140
1.25	2.3400	0.2380
1.375	2.5670	0.2610
1.5	2.7930	0.2850
1.625	3.0190	0.3090
1.75	3.2620	0.3320
