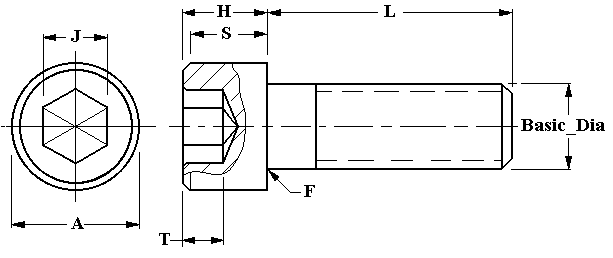

Socket  Head  Screw

 BASIC
DIA 		 A
Head Dia. 		 H
Head Height 		 S
Side Height 		 J
Hex Size 		 T
Key Engage 		 F
Fillet Radius
NO.0 0.096  0.060  0.054  0.051 0.025  0.002
NO.1 0.1180 0.0730 0.0660 0.0635 0.031  0.003
NO.2  0.140  0.086  0.077  0.079 0.038  0.003
NO.3  0.161  0.099  0.089  0.079 0.044  0.004
NO.4  0.183  0.112  0.101 0.0952 0.051  0.004
NO.5  0.205  0.125  0.112 0.0952 0.057  0.005
NO.6  0.226  0.138  0.124 0.1111 0.064  0.005
NO.8 0.2700 0.1640 0.1480 0.1426 0.077  0.006
NO.10  0.312  0.190  0.171 0.1587 0.090  0.006
.25  0.375  0.250  0.225  0.190 0.120 0.007
 .3125  0.469  0.313  0.281  0.253 0.151  0.009
 .375  0.5620  0.3750  0.3370  0.3160  0.1820  0.0120
.4375  0.656  0.438  0.394  0.379 0.213  0.014
.5  0.750  0.500  0.450  0.379 0.245  0.016
.625  0.938  0.625  0.562  0.505 0.307  0.021
.75 1.125 0.7500 0.675 0.631 0.370 0.025
.875  1.312  0.875  0.787  0.757 0.432  0.031
1  1.500  1.000  0.900  0.757 0.495  0.034
1.125  1.688  1.125  1.012  0.885 0.557  0.039
1.25  1.875  1.250  1.125  0.885 0.620  0.044
1.375  2.062  1.375  1.237  1.010 0.682  0.048
1.5  2.250  1.500  1.350  1.010 0.745  0.052
1.75  2.625  1.750  1.575  1.265 0.870  0.062
2 3.000 2.000 1.800 1.515 0.995 0.071
2.25 3.375 2.250 2.025 1.765 1.120 0.080
2.5 3.750 2.500 2.250 1.765 1.245 0.088
 2.75 4.125 2.750 2.475 2.015 1.370 0.097
3 4.500 3.000 2.700 2.265 1.495 0.106
3.25  4.875  3.250  2.925  2.265 1.620  0.114
3.5 5.250 3.500 3.150 2.765 1.745 0.124
3.75 5.625 3.750 3.375 2.765 1.870  0.134

4

6.000  4.000 3.600 3.015

1.995

 0.143
