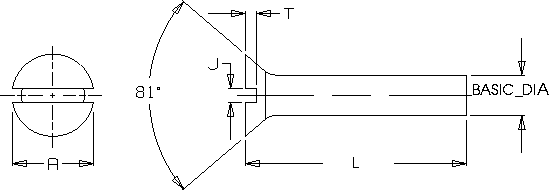

Flat Head Screw
BASIC
DIA
| A
Head Diameter
| J
Slot Width
| T
Slot Depth
|
| NO.0000
| 0.043
| 0.008
| 0.007
|
| NO.000
| 0.064
| 0.011
| 0.009
|
| NO.00
| 0.093
| 0.017
| 0.014
|
| NO.0
| 0.119
| 0.023
| 0.015
|
| NO.1
| 0.146
| 0.026
| 0.019
|
| NO.2
| 0.172
| 0.031
| 0.023
|
| NO.3
| 0.199
| 0.035
| 0.027
|
| NO.4
| 0.225
| 0.039
| 0.030
|
| NO.5
| 0.252
| 0.043
| 0.034
|
| NO.6
| 0.279
| 0.048
| 0.038
|
| NO.8
| 0.332
| 0.054
| 0.045
|
| NO.10
| 0.385
| 0.060
| 0.053
|
| NO.12
| 0.438
| 0.067
| 0.060
|
| .25
| 0.507
| 0.075
| 0.070
|
| .3125
| 0.635
| 0.084
| 0.088
|
| .375
| 0.762
| 0.094
| 0.106
|
| .4375
| 0.812
| 0.094
| 0.103
|
| .5
| 0.875
| 0.106
| 0.103
|
| .5625
| 1.000
| 0.118
| 0.120
|
| .625
| 1.125
| 0.133
| 0.137
|
| .75
| 1.375
| 0.149
| 0.171
|
