ISO Set Screw

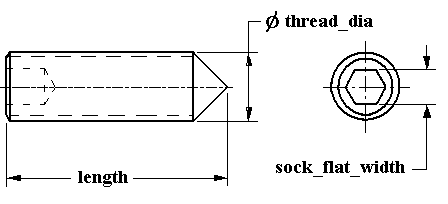

  ISO 4026

Dia Thrd	Sock Flat Width	Length
M1.6X0.35	0.7240	2, 2.5, 3, 4, 5, 6, 8
M2X0.4	0.9020	2, 2.5, 3, 4, 5, 6, 8, 10
M2.5X0.45	1.2950	2.5, 3, 4, 5, 6 to 12 by 2
M3X0.5	1.5450	2.5, 3, 4, 5, 6 to 12 by 2, 16
M4X0.7	2.0450	3, 4, 5, 6 to 12 by 2, 16, 20
M5X0.8	2.5600	4, 5, 6 to 12 by 2, 16, 20, 25
M6X1	3.0800	5, 6 to 12 by 2, 16, 20, 25, 30
M8X1.25	4.0950	6 to 12 by 2, 16, 20 to 40 by 5
M10X1.5	5.0950	8, 10, 12, 16, 20 to 50 by 5
M12X1.75	6.0950	10, 12, 16, 20 to 60 by 5
M16X2	8.1150	12, 16, 20 to 60 by 5
M20X2.5	10.1150	16, 20 to 60 by 5
M24X3	12.1420	20 to 60 by 5

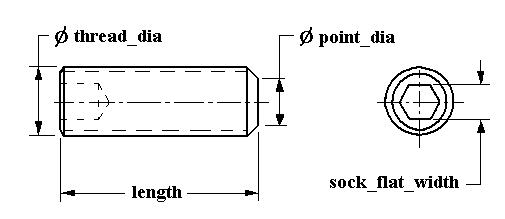

 ISO 4029

Dia Thrd	Point Dia	Sock Flat Width	Length
M1.6X0.35	0.8000	0.7240	2, 2.5, 3, 4, 5, 6, 8
M2X0.4	1.0000	0.9020	2, 2.5, 3, 4, 5, 6, 8, 10
M2.5X0.45	1.2000	1.2950	2, 2.5, 3, 4, 5, 6 to 12 by 2
M3X0.5	1.4000	1.5450	2.5, 3, 4, 5, 6 to 12 by 2, 16
M4X0.7	2.0000	2.0450	3, 4, 5, 6 to 12 by 2, 16, 20
M5X0.8	2.5000	2.5600	4, 5, 6 to 12 by 2, 16, 20, 25
M6X1	3.0000	3.0800	5, 6 to 12 by 2, 16, 20, 25, 30
M8X1.25	5.0000	4.0950	6 to 12 by 2, 16, 20 to 40 by 5
M10X1.5	6.0000	5.0950	8, 10, 12, 16, 20 to 50 by 5
M12X1.75	8.0000	6.0950	10, 12, 16, 20 to 60 by 5
M16X2	10.0000	8.1150	12, 16, 20 to 60 by 5
M20X2.5	14.0000	10.1150	16, 20 to 60 by 5
M24X3	16.0000	12.1420	20 to 60 by 5

ISO 4766

Dia Thrd	Length
M1.2X0.25	2, 2.5, 3, 4, 5, 6
M1.6X0.35	2, 2.5, 3, 4, 5, 6, 8
M2X0.4	2, 2.5, 3, 4, 5, 6, 8, 10
M2.5X0.45	2.5, 3, 4, 5, 6 to 12 by 2
M3X0.5	3, 4, 5, 6 to 12 by 2, 16
M4X0.7	4, 5, 6 to 12 by 2, 16, 20
M5X0.8	5, 6 to 12 by 2, 16, 20, 25
M6X1	6 to 12 by 2, 16, 20, 25, 30
M8X1.25	8, 10, 12, 16, 20 to 40 by 5
M10X1.5	10, 12, 16, 20 to 50 by 5
M12X1.75	12, 16, 20 to 60 by 5

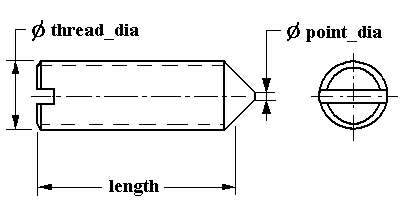

 ISO 7434

Dia Thrd	Point Dia	Length
M1.2X0.25	0.12000	2, 2.5, 3, 4, 5, 6
M1.6X0.35	0.16000	2, 2.5, 3, 4, 5, 6, 8
M2X0.4	0.20000	3, 4, 5, 6, 8, 10
M2.5X0.45	0.25000	3, 4, 5, 6 to 12 by 2
M3X0.5	0.30000	4, 5, 6 to 12 by 2, 16
M4X0.7	0.40000	4, 5, 6 to 12 by 2, 16, 20
M5X0.8	0.50000	5, 6 to 12 by 2, 16, 20, 25
M6X1	1.50000	6 to 12 by 2, 16, 20, 25, 30
M8X1.25	2.00000	8, 10, 12, 16, 20 to 40 by 5
M10X1.5	2.50000	10, 12, 16, 20 to 50 by 5
M12X1.75	3.00000	12, 16, 20 to 60 by 5

ISO 7436

Dia Thrd	Point Dia	Length
M1.6X0.35	0.80000	2, 2.5, 3, 4, 5, 6, 8
M2X0.4	1.00000	2.5, 3, 4, 5, 6, 8, 10
M2.5X0.45	1.20000	3, 4, 5, 6 to 12 by 2
M3X0.5	1.40000	3, 4, 5, 6 to 12 by 2, 16
M4X0.7	2.00000	4, 5, 6 to 12 by 2, 16, 20
M5X0.8	2.50000	5, 6 to 12 by 2, 16, 20, 25
M6X1	3.00000	6 to 12 by 2, 16, 20, 25, 30
M8X1.25	5.00000	8, 10, 12, 16, 20 to 40 by 5
M10X1.5	6.00000	10, 12, 16, 20 to 50 by 5
M12X1.75	8.00000	12, 16, 20 to 60 by 5
