ISO

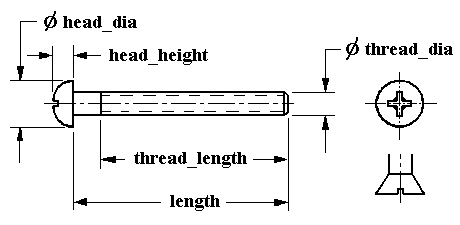

Phillips Flat and Pan Head Screw
ISO 7045
| Nominal Dia | Thread Dia | Head Dia | Head Height | Length | Thread Length |
| M1.6X.35 | 1.6000 | 3.2000 | 1.30000 | 3, 4, 5, 6 to 12 by 2, 16 | 2.3, 3.3, 4.3, 5.3 to 11.3 by 2, 15.3 |
| M2X0.4 | 2.0000 | 4.0000 | 1.60000 | 3, 4, 5, 6 to 12 by 2, 16, 20 | 2.2, 3.2, 4.2, 5.2 to 11.2 by 2, 15.2, 19.2 |
| M2.5X0.45 | 2.5000 | 5.0000 | 2.10000 | to 12 by 2, 16, 20,
25 | 2.1, 3.1, 4.1, 5.1 to 11.1 by 2, 15.1, 19.1, 24.1 |
| M3X0.5 | 3.0000 | 5.6000 | 2.40000 | 4, 5, 6 to 12 by 2, 16, 20, 25, 30 | 3, 4, 5 to 11 by 2, 15, 19, 24, 25 |
| M4X0.7 | 4.0000 | 8.0000 | 3.10000 | 5, 6 to 12 by 2, 16, 20 to 40 by
5 | 3.6, 4.6 to 10.6 by 2, 14.6, 18.6 to 38.6 by 5 |
| M5X0.8 | 5.0000 | 9.5000 | 3.70000 | 6 to 12 by 2, 16, 20 to 45 by 5 | 4.4 to 10.4 by 2, 14.4, 18.4 to 38.4 by 5, 38 |
| M6X1 | 6.0000 | 12.0000 | 4.60000 | 8, 10, 12, 16, 20 to 50 by 5, 60 | 6 to 10 by 2, 14, 18 to 38 by 5 |
| M8X1.25 | 8.0000 | 16.0000 | 6.00000 | 10, 12, 16, 20 to 50 by 5, 60 | 7.5, 9.5, 13.5, 17.5 to 37.5 by 5, 38 |
| M10X1.5 | 10.0000 | 20.0000 | 7.50000 | 12, 16, 20 to 50 by 5, 60 | 9, 13, 17 to 37 by 5, 38 |
