SOAL LOMBA:

PROMOSI KOMPETENSI SISWA(PKS)

SEKOLAH MENENGAH KEJURUAN

TINGKAT NASIONAL KE XII - 2004

BIDANG LOMBA

CABINET MAKING

DEPARTEMEN PENDIDIKAN NASIONAL

DIREKTORAT JENDERAL PENDIDIKAN DASAR DAN MENENGAH

DIREKTORAT PENDIDIKAN MENENGAH KEJURUAN

2004

Trade

Competitor

No：24 Cabinetmaking

No： Name：

Country：

List of Documents

Information for Competitors

Short Description

Cabinet Making technical Description

Equipment

Tools

Facilities

Material

Material List

Marking Form

Drawing, Scale

Trade

Competitor

No：24 Cabinetmaking

No： Name：

Country：

Information for Competitors

Working Instructions

The cabinet must be make as per drawing and instructions.

The filing cabinet is to be made with in 19 hours.

The first hour is allowed for checking the wood pieces and studying the drawing, after start working, the competitor cannot allowed make any question and change material.

All the pieces will have to be sanded to receive a polish.

During the fabrication, all the subject’s pieces must have the candidate’s number.

The face markings and setting out of the door and drawer must be handed into the judges for marking (C1 and C2)

Note : on the drawer you only need to set out dovetail on sides or front and back

Before gluing section D-1, D-2,D-3, D-4 and D-5 of the marking scheme must be handed into judges for marking.

all surfaces must be fit for polishing (laquering)

The competitors must keep track of the time themselves time will be stoped only in cases of illness or accident.

Trade

Competitor

No：24 Cabinetmaking

No： Name：

Country：

Safety instruction will be given by the workshop manager.

The large sircular show are to be us on veneered panels only use smaller circular saw for door and drawer component etc. If the machine in use put your country code on to the waiting list by the machine.

Leave your own measuring equipment (rule etc) on your cabinet at the finish.

On the mitred top and bottom panels you may use loose tongue or lamelo biscuits

Drawing symbols

Trade

Competitor

No：24 Cabinetmaking

No： Name：

Country：

Short Description

Project： The Filing Cabinet

Materials： - Solid Gioi, Plywood. MDF and Sliced Teak Veneers.

Constructions： - This filing cabinet is a traditional and contemporary design.

- It is composed of a box corrected with tenons and mortises.

- The drawer is fitted with dovetail joints.

- The top is composed of a crossed veneered panel and a solid

wood frame.

- The shelve is assembled in its angles with squared joints and the rest with lamello.

-The candidate must leave the tape measure or the ruler she/he

used at the end of the competition.

Basic

Measurements：

Secondary

Measurements：

Alat-Alat Tangan Yang Harus Dibawa Peserta PKS XII 2004,

Bidang Lomba : Kabinet Making

Gergaji Potong ( Gorok ).

Gergaji Punggung.

Ketam Tangan.

Pahat ukuran 8; 10; 12; 15; 20; 25mm.

Palu Kayu.

Palu Besi ( Martil ).

Kraspen.

Perusut.

Siku-siku 90 ⁰.

Siku-siku 45 ⁰.

Siku-siku Goyang.

Rol Meter.

Pensil Kayu.

Obeng ( + ) ukuran kecil; sedang; besar.

Obeng ( - ) ukuran kecil; sedang; besar.

Persing Tangan.

Kakak Tua ( Catut ).

================================

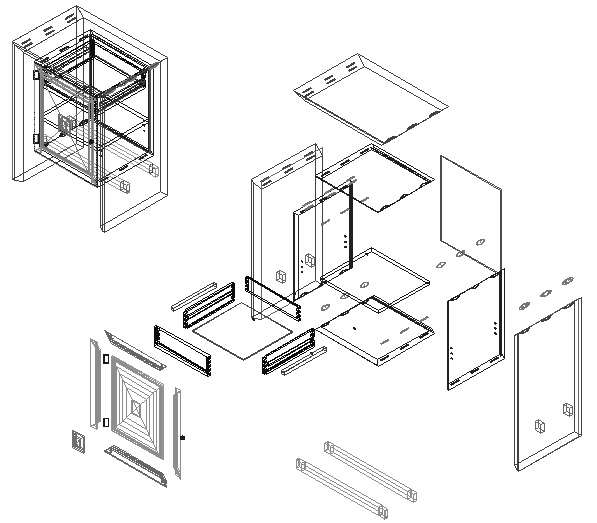

Figure 1

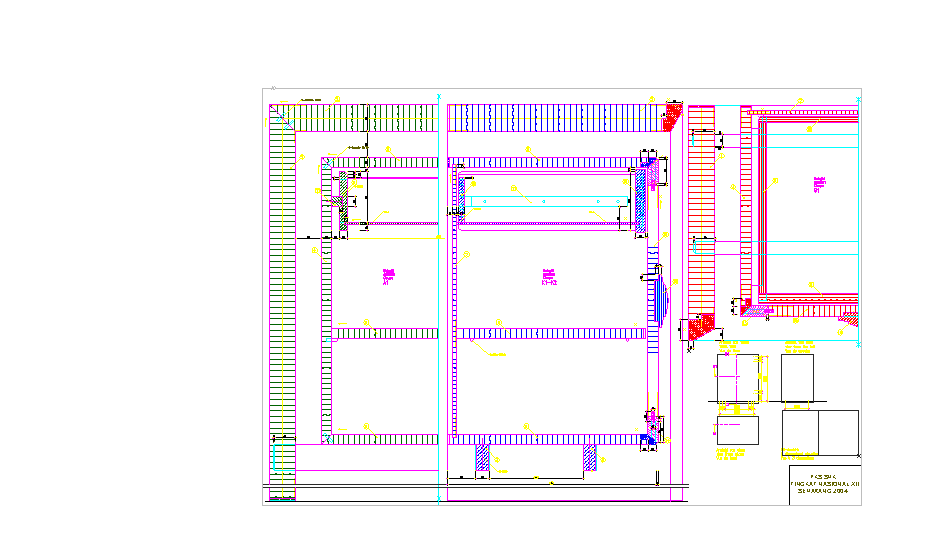

Figure 2:

MATERIAL

*NO.*	*NAME*	*DESCRIPTION*	*QTY*	*REFERENCE*
1.	Side panels	900 x 500 x 50 mm	48
2.	Top panel	700 x 500 x 50 mm	24
3.	Traversel	700 x 55 x 30 mm	48
4.	Face solid wood of side panels	900 x 55 x 45 mm	48
5.	Face solid wood of top panel	700 x 55 x 45 mm	24
6.	side panels	600 x 450 x 20 mm	48
7.	The Top and bottom panels	500 x 450 x 20 mm	48
8.	shelf	450 x 400 x 20 mm	24
9.	Backwall	600 x 450 x 7 mm	24
10.	face solid wood of the side panels	600 x 35 x 25	48
11.	face solid wood of the top and bottom panels	550 x 35 x 25 mm	48
12	Door frieze	600 x 55 x 25 mm	48
13	Door frieze	500 x 55 x 25 mm	48
14	door filling	500 x 400 x 20 mm	24
15	inlayed panel	150 x 85 x 35 mm	24
16	solid wood hinge	500 x 20 x 7 mm	48
17	solid wood hinge	400 x 20 x 7 mm	48
18	drawer front	450 x 170 x 25 mm	24
19	drawer sides	400 x 150 x 20 mm	48
20	drawer back	450 x 100 x 15 mm	24
21	drawer strips	400 x 35 x 25 mm	48
22	drawer bottom	400 x 400 x 4 mm	24
23	hinge bonds		48
24	nob		24
25	magnet retainer		24
26	peg		150
27	biscuits (lamelo)		1000
28	screws		300
29	CONTACT ADHESIVE	FOR WOOD	24 CAN
30	ADHESIVE TYPE PAPER	FOR VENEER	24 ROLL
31	PVA GLUE	SMALL, BOTTLE	24
32	SAND PAPER	#100, #150, #180, #220, #600, 220SHEETS PER EACH (SPECIAL FORWARD)	600
33	PAPER	PACKAGE OF 250 SHEETS, A 4 SIZE	2
34	CLEANING RAGS		22

MATERIAL LIST

NO.	QTY	PART	LENGTH	WIDTH	THICK	MATERIAL
Outer Body
1.	2	Side panels	850	420	50	*Teak Wood, Solid Teak*
2.	1	Top panel	650	420	50	Teak Wood, Solid Teak
3.	2	Traversel	630	50	25	Solid Teak
4.	2	Face solid wood of side panels	850	50	40	Solid Teak
5.	1	Face solid wood of top panel	650	50	40	Solid Teak
inner body
6.	2	side panels	550	380	20	*Teak Wood, Solid Teak*
7.	2	The Top and bottom panels	450	380	20	*Teak Wood, Solid Teak*
8.	1	shelf	410	355	20	*Teak Wood, Solid Teak*
9.	2	Backwall	524	424	7	Plywood
10.	2	face solid wood of the side panels	550	30	20	Solid Teak

11.	2	face solid wood of the top and bottom panels	450	30	20	solid teak
the door
12.	2	Door frieze	542	50	20	solid teak
13.	2	Door frieze	442	50	20	solid teak
14.	1	door filling	442	342	20	Multiplek, Veneered on both side
15.	1	inlayed panel	100	77	27	solid teak
16.	2	solid wood hinge	460	18	6	Multiplek
17.	2	solid wood hinge	360	18	6	Multiplek
DRAWER
18.	1	drawer front	380	120	20	solid teak
19.	2	drawer sides	353	112	15	solid teak
20.	1	drawer back	380	87	12	solid teak
21.	2	drawer strips	300	26	20	solid teak
22.	1	drawer bottom	362	349	4	plywood
Metal fittings
23.	2	hinge bonds				brass polished
24.	1	nob				brass
25.	1	magnet retainer				brass
26.	4	peg				metal
connecting means
27	24	biscuits ( lamelo)				wooden
28	6	screws				3,5 x 60
