| ERF-2030 RF POWER TRANSISTOR 25w |
| NEW PRODUCT ANNOUNCEMENT SEPTEMBER 2005 Introducing.... EKL Component's ERF-2030 RF Power Transistor and EN-Prefix Companion Parts Everyone is in a panic! Last year, Mitsubishi discontinued the 3 most popular transistors in our industry - the 2SC2166, 2SC1969 AND 2SC2312. These parts are already becoming scarce and prices are skyrocketing! The panic is over! The ERF-2030 is a versatile 25 watt RF transistor that can replace ALL THREE discontinued Mitsubishi parts! ERF-2030 Features... 1/ The ERF-2030 is a 25 watt* transistor - therefore, it is not just a replacement part, but also an UPGRADE to the old Mitsubishi part. Example: EKL Components has a documented modification for turning a Galaxy 33 into a 50 watt radio using the 3pcs of the ERF-2030 and 2 companion parts. 2/ The ERF-2030 is NOT an "electrical drop in replacement" for the 2SC2166, 2SC1969 and 2SC2312. However, circuit modifications on most radio's are minimal and documentation is readily available for FREE. 3/ The ERF-2030 is a "mechanical drop in replacement" for the 2SC2166, 2SC1969 and 2SC2312. This means that the The ERF-2030 features a TO-220 package with the SAME pinout configuration as the 2SC2166, 2SC1969 and 2SC2312. Therefore NO mechanical modifications to the ERF-2030 are necessary for most installations 4/ EKL Components manufactures a series of companion parts to the ERF-2030. The EN-1230, EN-369DR and EN-369FN are available to make the radio modifications easier and maximise performance 5/ PRICE!!! Example: To do the Galaxy 33, 50 watt mod, a dealer would need to buy three ERF-2030's and two EN-369DR's - for a total dealer cost of around $11. The current market price for a SINGLE 2SC1969 is almost $10 Making the ERF-2030 and EN companion parts the smart choice! * EKL Components rates the ERF-2030 at 25 watts PEP. This is a "Conservative" rating! In Lab tests and real world modifications, a single ERF-2030 has produced as much as 40w PEP. All results will vary and are solely determined by the circuit surrounding the ERF-2030 MORE INFO SHORTLY..................... |
 |
 |

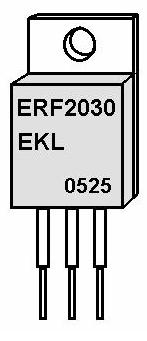

| ERF-2030 25 watt* RF Transistor for Mobile Radios ______________ |

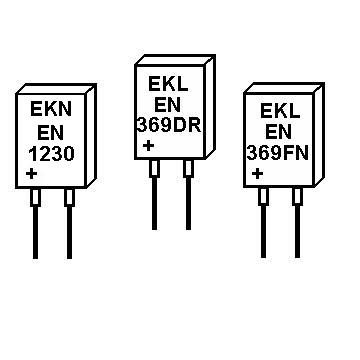

| EN-1230 EN-369DR EN-369FN Companion Parts Maximises Performance Simplifies Installations |
