Basic model UAZ-3151 (former 469) has wheel gears, there are no locking differentials. Ground clearance 11.8" (3.1" more). Track: 4'9.2" (0.3" wider). Height: 6'9.2" (2.2" higher). Max accent angle: 31 deg. Curb weight: 3,606 lbs (101 lbs more). Fuel economy: 13.7 mpg (at 57 mph).

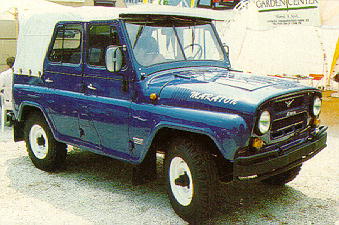

The passenger off-roader UAZ-31512 (latest version of UAZ-469B). It differs from 469B by: coil spring front suspension, engine (UMZ-4178 type) - compression ratio (7.2:1), power (91 hp @ 4,000 rpm), max. torque rpm (2,500), front suspension with coil springs, tyres (215/80R15), LxBxH = 13'2.5"x5'11.1"x6'6.3", speed (68 mph). Price: $2,900.
There is more comfortable variant UAZ - 31514 with metal top. Differs from UAZ-31512 by: BxH = 5'10.3"x6'7.5", full weight: 5,622 lbs. Price: $3,300.
 |
 |
An UAZ-31519 differs from others by UMZ-4218.10 gasoline
(Bosch injection) motor with ohv, 4 cylinders in line, displacement 2,886 cc (bore
3.94", stroke 3.62"), compression ratio 8.2:1. Power 98 hp @4,000 rpm, torque
157 ft.-lb. @ 2,500 rpm. Tyres: 8.9-15. BxH = 5'10"x6'8.1". Curb weight: 3,913
lbs, full weight: 5,545 lbs. Top speed: 68 mph, acceleration 0 to 62 mph - 34.2 s. Fuel
tank: 20.6 gal. Fuel economy: 17 mpg (average). Price $3,290.
Carburetor version has CR 6.7:1, 86 hp @ 4,000 rpm and 142 ft.-lb. @ 2,800 rpm. Top speed
75 mph. Price: $4,300.
Weak UMZ-4178 motor (2,445 cc, CR 6.7:1) has 78 hp @ 4,000 rpm, 122 ft.-lb. @ 2,500 rpm.
It can be equipped with Toyota's 2L-T turbo-diesel: in-line 4, displacement: 2,446 cc
(bore 3.62", stroke 3.62"), CR 21:1. Peak power 91 hp @ 4,200 rpm, torque 167
ft.-lb. @2,500 rpm.
It also can be equipped with Toyota's 3L diesel: in-line 4, displacement: 2,779 cc (bore
3.78", stroke 3.78"), CR 22.2:1. Peak power 90 hp @ 4,000 rpm, torque 139
ft.-lb. @2,400 rpm. Top speed: 72 mph, acceleration 0 to 62 mph: 29.8 s. Fuel economy:
more than 23.5 mpg.
