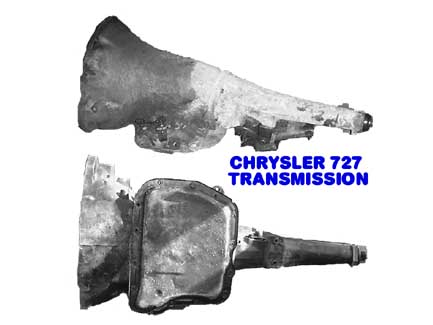

| Chrysler 727 Torqueflite Transmission |
| Helpful hints on this transmission. |
 |
 |
 |
| 1. Bolt plate on .. only fits one way 2. Find small hole .. see picture 3. Weld plate across from hole. see green weight on top |
| 1. Weight used for 360 torque converter balance. 2. Plate .. see small hole .. two sizes 10 and 11 inch 3. Place on torque plate to be welded |
 |
| We found that there are two sizes of torque converters... 10 inch and 11 inch |
| old converter front |
| old converter front |
|
| The plate and converter will bolt to motor only one way.... if holes do not line up just rotate and try again... |
 |
 |

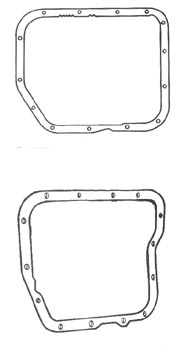

| Chrysler 904 Trans pan gasket |
| Chrysler 727 Trans pan gasket |
| A quick way to ID the Chrysler Trans |
