XBSA API
Onbar can communicate with multiple storage managers. The reason we can
pull this off is because recently a standard api has been developed so that
different vendors can communicate with each other. This standard/language
is know as XBSA. Below are the XBSA calls that onbar uses in order to
backup and restore dbspaces to/from the online engine. The functions below
are the complete set of XBSA call. It is mearly the calls that onbar uses.
To download the complete XBSA API handbook (Postscript format)
Click Here
Click HERE to look at the possible
return codes that these xbsa functions may return.
- BSABeginTxn()-
starts an XBSA API transaction.
- BSACreateObject()- Creates an XBSA object. This basically tells that
storage manager to make room for a new backup. The storage manager
passes back the copyid (inside the objectdescriptor) that is the
unique identifier that onbar uses when it need to get that
back/object.
- BSAEndData()-Tells the storage manager that there is no more data to
send. (we are finished sending data associated with that
particular object)
- BSAEndTxn()-
Tell the storage manager that we are finished with a backup
transaction.
- BSAGetData()-
This function returns a single buffer of data from that storage
manager. We pass it the copyid (in the object descriptor) and the
storage manager is responsible for finding the requested
data.
- BSAGetObject()-
Called to gather information about a particular storage manager
object (ie, date created , size, owner etc).
- BSAInit()-
connects to the storage manager and starts a session. This
function will return a 'handle' that is a unique identifier
associated to that session.
- BSAQueryApiVersion()- Called to validate which version of the XBSA libraries
onbar is talking to.
- BSASendData()-
Sends a buffer full of data to the storage manager.
- BSATerminate()-
Terminates a session with the storage manager. It also frees up
and resources that were allocated in the BSAinit call.

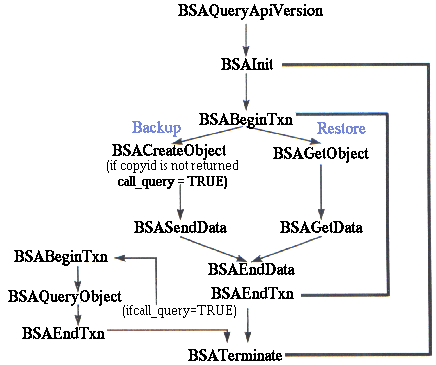

Below is a simplistic diagram on how an XBSA application goes. Onbar
(which is an XBSA applicalion in it self)
follows this flow chart as well when creating/restoring archives.
Onbar will loop calling BSASendData (and BSAGetDATA) until the is no more data
to process.
