Lego Technic "Steam" Engine
by Per Arne Rikvold
Building Instructions by C S Soh

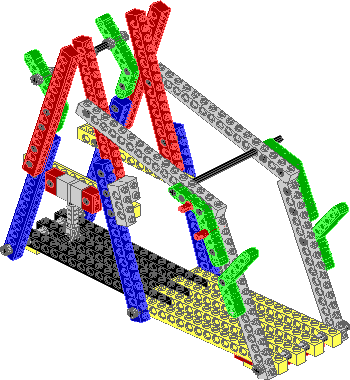

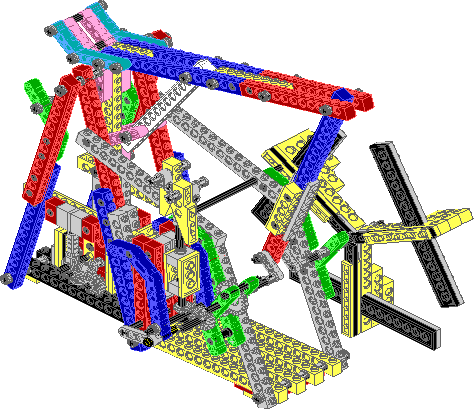

Assembly of complete engine
1 Back A-frame
2 A-frame base
3 Front A-frame

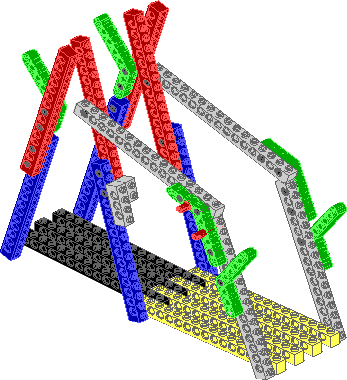

4 Trapezoid frame
Note
The two pins for mounting the gearbox are indicated in red for clarity. They should of course be black.

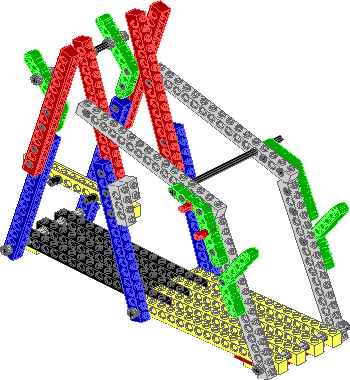

5 Base plates and crosspiece
6 Crosspiece and valve

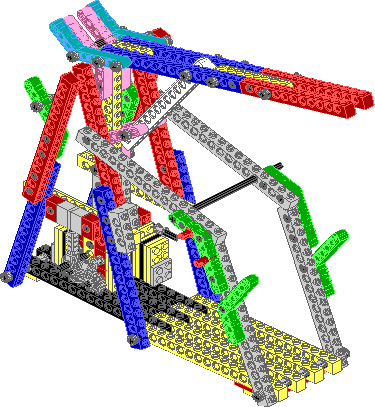

7 Pendulum and walking beam

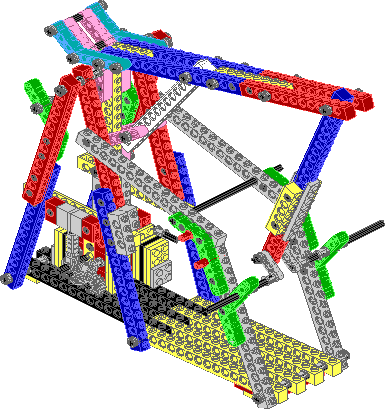

8 Connecting rod and crank

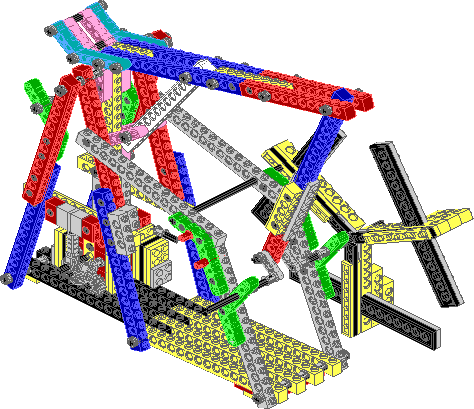

9 Flywheel
10 Gearbox and governor

LDraw files
