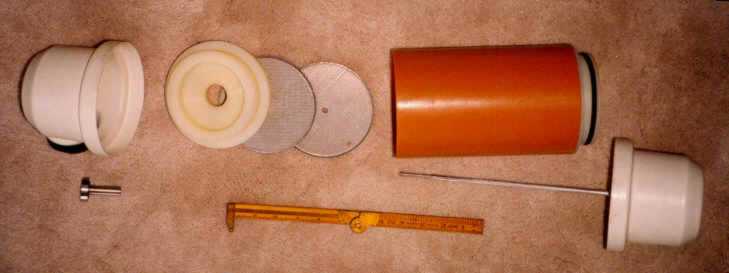

The scrubber assembly, end caps are
left and right and serve as water traps. Hoses are also attached to the end
caps. The off-white disk acts to seal the scrubber body to the end caps and
act as a spring pressure plate, applying pressure to the perforated metal
disks and thus insure no "channeling" through the scrubber material, The rod
through the unit pulls the works together. |
 |

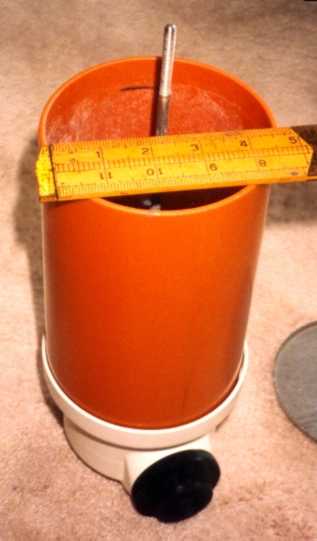

The scrubber body is manufactured
from a section of sewer pipe (scale in inches). |
 |

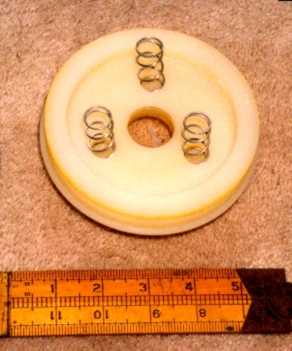

The spring pressure plate. |
 |

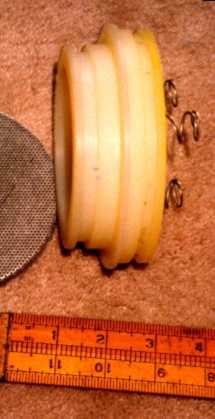

Spring pressure plate, side view.
Note the O-ring grooves. |
 |

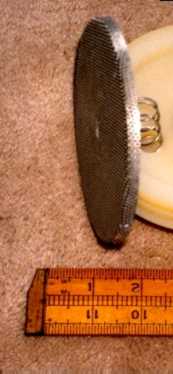

Perforated metal plate on edge |
 |

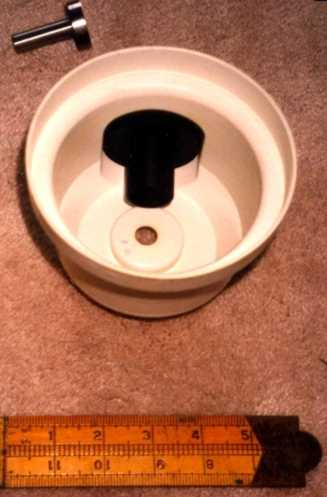

Inside the end cap, note the piping
extension that acts as part of the water dam. |
 |
End screw holds the unit together |
 |

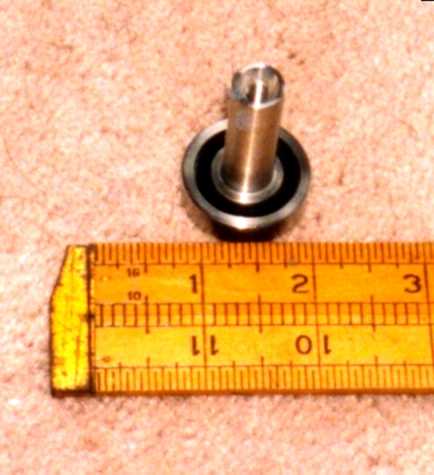

Close-up view of end screw, the
O-ring prevents water from entering the scrubber housing. |
