MSRP :

$10,299*

Engine

Type :

998cc, liquid-cooled, 20-valve, DOHC, in-line four-cylinder

Bore x stroke / mm :

74 x 58mm

Compression Ratio :

11.8:1

Carburetion :

Suction-Piston Type Fuel Injection w/40mm throttle bodies (4) w/throttle position and RPM sensors

Ignition :

Digital TCI

Transmission :

6-speed w/multi-plate clutch

Final Drive :

O-ring chain

Chassis

Suspension/Front :

43mm inverted telescopic fork w/adj. preload, compression and rebound damping; 4.7" travel

Suspension/Rear :

Single shock w/piggyback reservoir and adj. preload, compression and rebound damping; 5.1" travel

Brakes/Front :

Dual 298mm floating discs w/4-piston calipers

Brakes/Rear :

220mm disc w/2-piston pin-slide caliper

Tires/Front :

120/70-ZR17

Tires/Rear :

190/50-ZR17

Dimension

Length :

80.3"

Width :

27.4"

Height :

43.5"

Seat Height :

32"

Wheelbase :

54.9"

Rake (Caster Angle) :

24.0°

Trail :

4.1"

Fuel Capacity :

4.5 gallons

Oil Capacity (with oil filter change) :

3.3 qt.

Dry Weight :

382 lbs.

Other

Primary Reduction Ratio :

68/43 (1.581)

Secondary Reduction Ratio :

43/16 (2.688)

Gear Ratio :

35/14 (2.500), 35/19 (1.842), 30/20 (1.500), 28/21 (1.333), 30/25 (1.200), 29/26 (1.115)

Color :

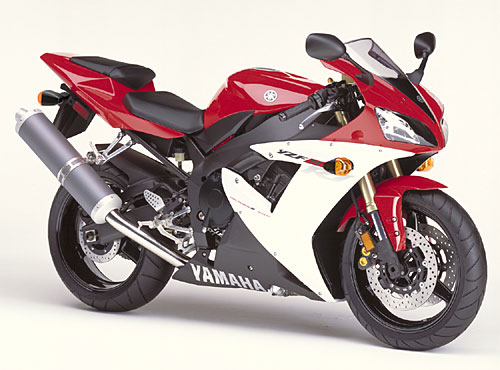

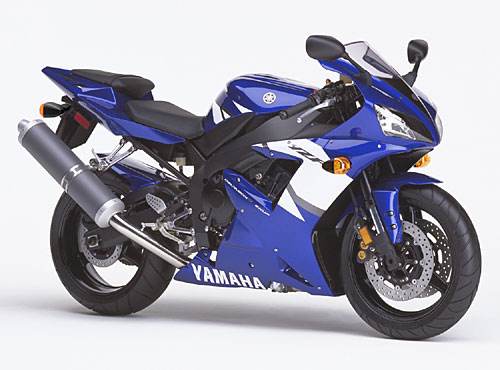

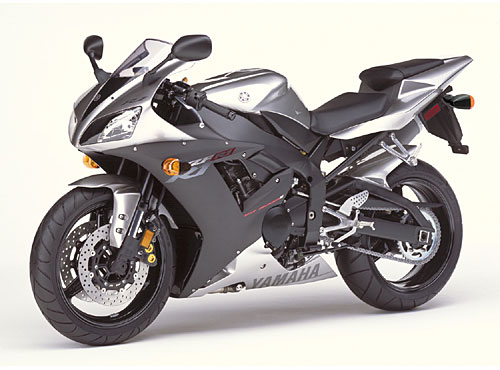

Team Yamaha Blue/White; Red/White; Liquid Silver
