Fieldstripping the Stoeger .22 Luger
The following photographs display the significant steps to fieldstrip
this pistol.
1. MAKE CERTAIN THE PISTOL IS UNLOADED!
Pull back the bolt to visually and manually verify that there is no cartridge
in the chamber.
2. Remove the magazine.

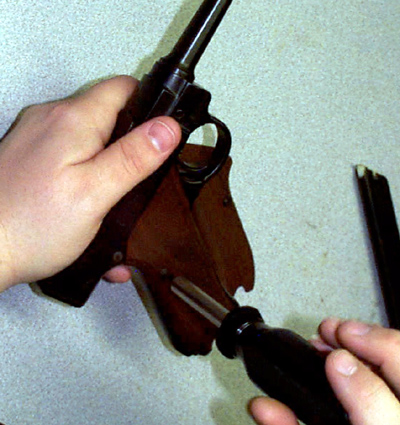

3. Remove the grips.

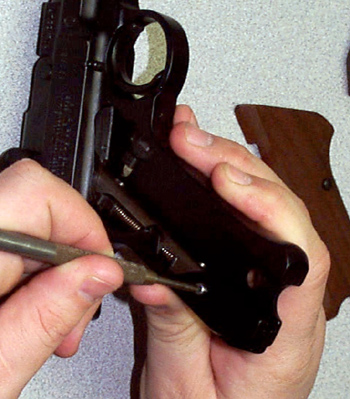

4. Remove the crosspin that fastens the mainspring housing to the frame.

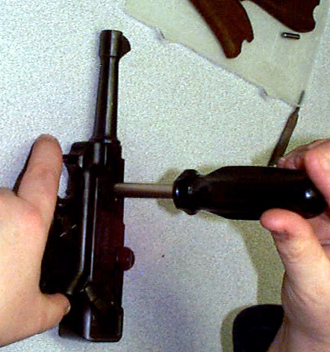

5. Loosen the screw on the left side of the frame. Don't remove
it, just loosen it 2 or 3 turns.
6. Using a punch, press in the spring-loaded plunger at the rear of
the frame. This will allow the action to be removed.

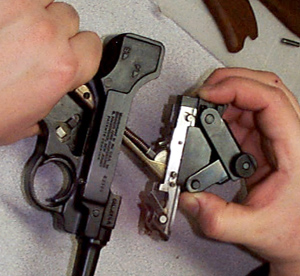

7. Compress the bolt assembly and begin lifting the entire assembly
from the frame.
