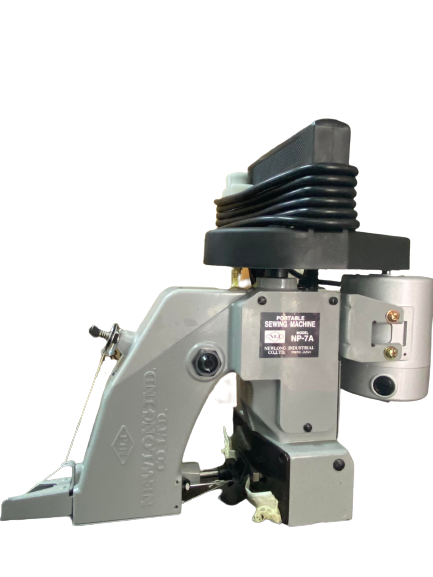

NEWLONG Portable Bag Closer Model NP-7A
made in Japan
HIGH-SPEED NEW TYPE WITH PLASTIC HANDLE AND LUBRICATOR
SINGLE THREAD CHAIN STITCH
High speed revolution. 1,700 - 1,900 r.p.m.
Safety plastic handle for insulation.
Oil pump lubrication system. Oil lines direct lubricant to main moving elements.
Improved looper and simple mechanism
Steel cam ( no plastic cams )
Automatic thread cutting
Minimum maintenance
For kraft paper , cotton , hessian , jute , PP/PE woven cloth and other cloth materials.
Pressure foot lifter , shoulder belt , and thread cone cover available at extra cost.
SPECIFICATIONS
| Revolution (r.p.m.) | 1,700 + 200 |
| Stitch length | 8.5 mm ( 3 per inch ) fixed |
| Needle | available - made in japan |
| Weight | 6 kg ( 13 ils ) with thread |
| Drive Motor | 90W 50/60 Hz , 1-ph. 220V |
| Oil | available in 1 liter & 1 gallon |
| Thread - "SUNLOWER " | available in 2 sizes - small & big |
| Balancer | Toolmate Spring Balancer |
