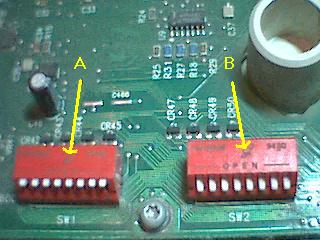

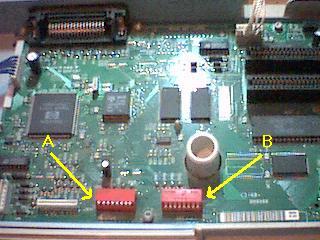

CONJUNTO DE SWITCHES A e B

CONFIGURAÇÃO DO SWITCH A

Switchs

A1

A2

A3

A4

A5

A6

A7

A8

Character Set

PC-8

DN

DN

DN

DN

Roman8

DN

DN

DN

UP

PC-8(D/N)

DN

DN

UP

DN

ISO United Kingdom

DN

DN

UP

UP

ISO Germany (21)

DN

UP

DN

DN

ISO France (69)

DN

UP

DN

UP

ISO Italy(15)

DN

UP

UP

DN

ISO Norway(60) v.1

DN

UP

UP

UP

ISO Sweden (11) for names

UP

DN

DN

DN

ISO Spain (17)

UP

DN

DN

UP

ASCII (06)

UP

DN

UP

DN

ISO Portugal (16)

UP

DN

UP

UP

PC-850

UP

UP

DN

DN

ECMA 94 Latin 1

UP

UP

DN

UP

Legal

UP

UP

UP

DN

Sets the Printer Character Set to the Default Character Set of the Front Font Cartridge

UP

UP

UP

UP

Switchs

A1

A2

A3

A4

A5

A6

A7

A8

Tamanho do Papel e Envelope

U.S. Letter (8.5x11 inches)

DN

DN

A4 (210 mm x 297 mm)

DN

UP

US Legal (8.5x14 inches)

UP

DN

Envelope (Com 10.)

UP

UP

Carriage Return Definition (CR)

CR=CR only

DN

CR=CR + Linefeed

UP

Perforation Skip Mode

Enabled

DN

Disabled

UP

CONFIGURAÇÃO DO SWITCH B

Chave

B1

B2

B3

B4

B5

B6

B7

B8

Modo Escala de Texto

Desabilitado (63 linhas por página)

DN

Habilitado (66 linhas por página)

UP

Definição do Cartucho de RAM

RAM/cartucho p/ carregamento de Fontes.

DN

RAM em cartucho para Input Buffer

UP

RS-232-C Baud Rate (Apenas a 550C)

9600 Baud

DN

DN

19200 Baud

DN

UP

2400 Baud

UP

DN

1200 Baud

UP

UP

RS-232-C Parity e Word Length

Parity=N, WL=8 Data Bits

DN

DN

Parity=O, WL=7 Data Bits

DN

UP

Parity=E, WL=7 Data Bits

UP

DN

Parity=N, WL=8 Data Bits

UP

UP
