Front Drag spinning reel with anti reverse clutch
Total Nos. of Model : RGS, RGF, RGP,  RGE, RTP, RDX, RJK, RDXSS,  RGY. TINY

Professional quality Fresh water spinning reel
 Note  **= with anti reverse  RS SERIES

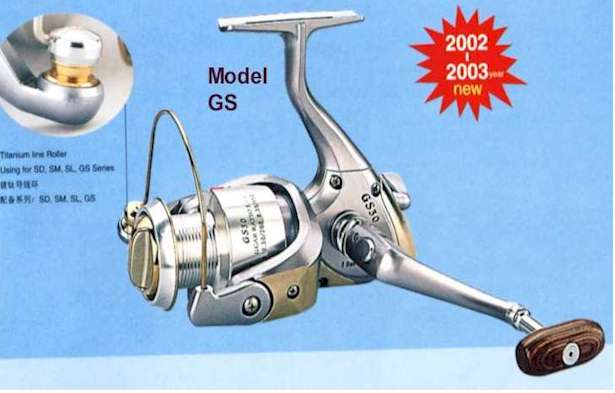

Rotors are all checked and  Dynamically computer balanced. Front drag control spinning reel -gs modelSeries RGS With Anti Reverse-( with Titanium plated line guide)
Size Gear ratio Spool capacity  mm/mtr Spool Capacity lb/yd stop
points		 Box
size-CM
RGS1000A12 5.5:1 0.18/190, 0.20/160, 0.25/100.  2/290, 4/150, 6/110. 30 13X12X8.6
RGS2000A12 5.5:1 0.18/220, 0.20/230, 0.25/150, 6/160, 8/110, 10/80 30
RGS3000A12 6.2:1 0.25/290, 0.30/200, 0.35/150 8/210, 10/150, 12/130 35 14X13.5X8.6
RGS4000A12 6.2:1 0.30/270, 0.35/200, 0.40/150 10/200, 12/170, 15/135 35
RGS5000A12 5.2:1 0.35/240, 0.40/190, 0.50/120 12/210, 15/170, 20/100 40 16X15X11
RGS6000A12 5.2:1 0.45/210, 0.50/170, 0.60/120 18/200, 20/165, 30/100 40
Aluminium spool, Ball race 12bb, Handle closing by a quick push button.

Front drag control spinning reel -gy modelSeries RGY With Anti Reverse
Size

Gear ratio

 Spool capacity  mm/mtr Spool Capacity lb/yd stop
points		 Box
size-CM
RGY1000A11 5.5:1 0.18/190, 0.20/160, 0.25/100.  2/290, 4/150, 6/110. 30 13X12X8.6
RGY2000A11 5.5:1 0.18/220, 0.20/230, 0.25/150, 6/160, 8/110, 10/80 30
RGY3000A11 5.5:1 0.25/290, 0.30/200, 0.35/150 8/210, 10/150, 12/130 35 14X13.5X8.6
RGY4000A11 5.5:1 0.30/270, 0.35/200, 0.40/150 10/200, 12/170, 15/135 35
RGY5000A11 5.2:1 0.35/240, 0.40/190, 0.50/120 12/210, 15/170, 20/100 40 16X15X11
RGY6000A11 5.2:1 0.45/210, 0.50/170, 0.60/120 18/200, 20/165, 30/100 40
Aluminium spool, Ball race 11bb, Handle closing by a quick push button.
 Standard 11ball race. Max ball race 12

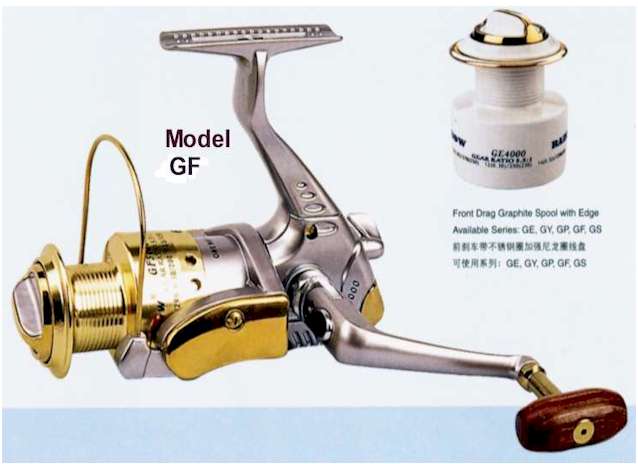

Front drag control spinning reel -gf modelSeries RGF With Anti Reverse
Size Gear ratio Spool capacity  mm/mtr Spool Capacity lb/yd stop
points		 Box
size-CM
RGF1000A10 5.5:1 0.18/190, 0.20/160, 0.25/100.  2/290, 4/150, 6/110. 30 13X12X8.6
RGF2000A10 5.5:1 0.18/220, 0.20/230, 0.25/150, 6/160, 8/110, 10/80 30
RGF3000A10 5.5:1 0.25/290, 0.30/200, 0.35/150 8/210, 10/150, 12/130 35 14X13.5X8.6
RGF4000A10 5.5:1 0.30/270, 0.35/200, 0.40/150 10/200, 12/170, 15/135 35
RGF5000A10 5.2:1 0.35/240, 0.40/190, 0.50/120 12/210, 15/170, 20/100 40 16X15X11
Aluminium spool, Ball race 10bb, Handle closing by a quick push button.
Standard 10ball race. Max ball race 12

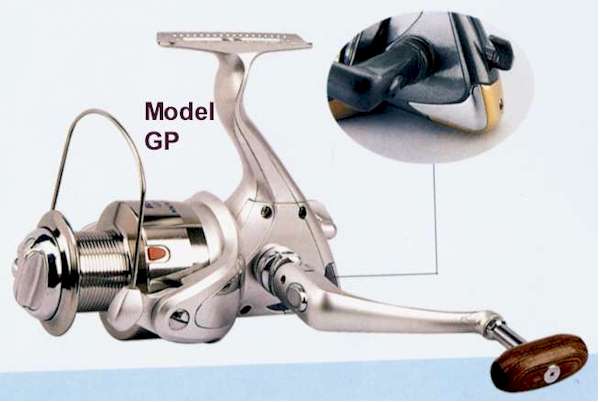

Front drag control spinning reel -gpSeries RGP With Anti Reverse
Size Gear ratio Spool capacity  mm/mtr Spool Capacity lb/yd stop
points		 Box
size-CM
RGP1000A8 5.5:1 0.18/190, 0.20/160, 0.25/100.  2/290, 4/150, 6/110. 30 13X12X8.6
RGP2000A8 5.5:1 0.18/220, 0.20/230, 0.25/150, 6/160, 8/110, 10/80 30
RGP3000A8 5.5:1 0.25/290, 0.30/200, 0.35/150 8/210, 10/150, 12/130 35 14X13.5X8.6
RGP4000A8 5.5:1 0.30/270, 0.35/200, 0.40/150 10/200, 12/170, 15/135 35
RGP5000A8 5.2:1 0.35/240, 0.40/190, 0.50/120 12/210, 15/170, 20/100 40 16X15X11
RGP6000A8 5.2:1 0.45/210, 0.50/170, 0.60/120 18/200, 20/165, 30/100 40
Aluminium spool, Ball race 8bb, Handle closing by a quick push button.
Standard 8ball race. Max ball race 12

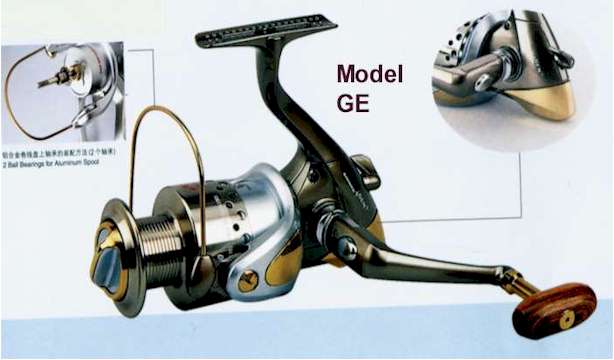

Front drag control spinning reel- geSeries RGE With Anti Reverse
Size Gear ratio Spool capacity  mm/mtr Spool Capacity lb/yd stop
points		 Box
size-CM
RGE1000A8 5.5:1 0.18/190, 0.20/160, 0.25/100.  2/290, 4/150, 6/110. 30 13X12X8.6


RGE2000A8 5.5:1 0.18/220, 0.20/230, 0.25/150, 6/160, 8/110, 10/80 30
RGE3000A8 5.5:1 0.25/290, 0.30/200, 0.35/150 8/210, 10/150, 12/130 35 14X13.5X8.6
RGE4000A8 5.5:1 0.30/270, 0.35/200, 0.40/150 10/200, 12/170, 15/135 35
RGE5000A8 5.2:1 0.35/240, 0.40/190, 0.50/120 12/210, 15/170, 20/100 40 16X15X11

Aluminium spool, Ball race 8bb, Handle closing by a quick push button.
standard 8ball race. Max ball race 12

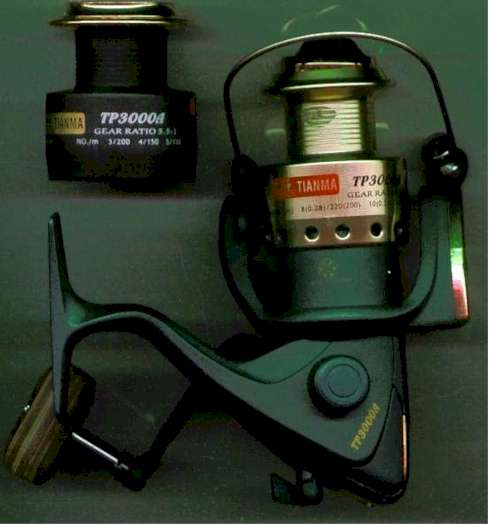

Front drag control spinning reel tp Series RTP
Code Nos of BB Gear Ratio

Spool capacity

 Remarks
RTP3000A5 5BB



 5.5:1



 #8/220yd, #10/200yd, #12/180yd,
 0.28/200m, 0.29/180m, 0.30/170m		 Reels come with twin spool: alu+ graphite
Flick action closing handle
ANTI REVERSE as std
RTP4000A5

0.29/250m, 0.30/230m, 0.32/200m
#10/207yd,#12/250yd, #14/220yd

RTP5000A5

0.40/210m, 0.50/150m, 0.60/110m
#8/431yd, #10/368yd, #12/324yd


Front drag control spinning reel dxSeries RDX8000F-With Anti Reverse
Size Gear ratio Spool capacity  mm/mtr Spool Capacity lb/yd WT
gm
RDX8000FA1 5.1:1 0.15/150, 0.17/120, 0.20/90.  3/130, 4/80, 6/65. 145

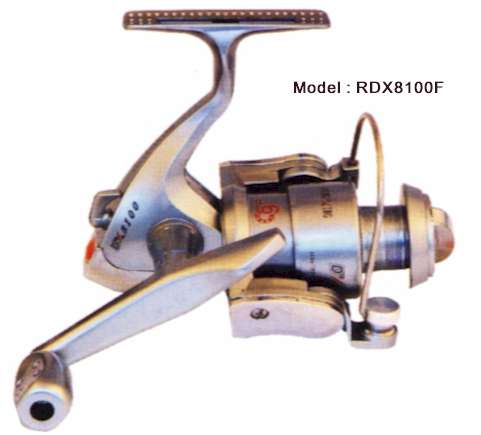

RDX8100FA10 5.1:1 150
RDX820FA1 5.1:1 0.17/130, 0.20/110, 0.23/120 3/150, 4/120, 6/100 150
RDX8200FA10 5.1:1 155

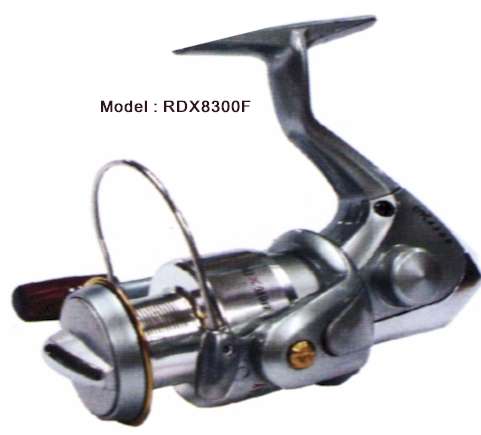

RDX8300FA10 5.2:1 0.20/250, 0.25/170, 0.30/120 5/245, 8/180, 10/135 270
RDX8350FA10 5.2:1 0.25/240, 0.30/170, 0.32/170 8/245, 10/185, 12/170 280
RDX8400FA10 5.2:1 0.30/215,0.32/195, 0.35/170 10/235, 12/210, 14/185 295
RDX8500FA10 5.2:1 0.32/255, 030/215, 0.40/170 12/175, 14/235, 18/195 305

Aluminium spool with holes around the rim, Ball race 8bb, Handle closing by a quick push button.  Ball race from 1bb--10bb

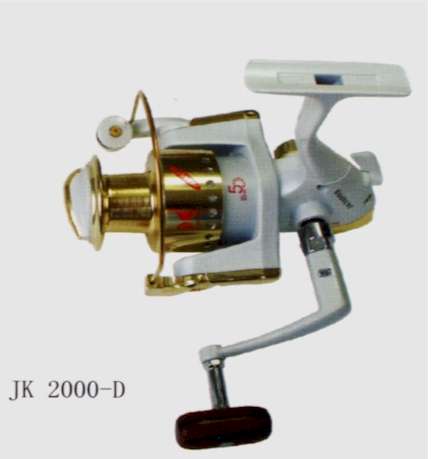

Front drag control spinning reel jkSeries RJK With Anti Reverse
Size Gear ratio Spool capacity  mm/mtr Spool Capacity lb/yd WT
gms
RJK1000A1 5.1:1 0.20/250, 0.25/170, 0.30/120.  5/265, 8/150, 10/135 225
RJK1000DA8 260
RJK2000A1 0.25/240, 0.30/170, 0.32/155, 8/245, 10/185, 12/170 240
RJK2000DA8 275

Aluminium spool, Ball race 8bb, Handle closing by a quick push button.
standard 8ball race. Max ball race 12

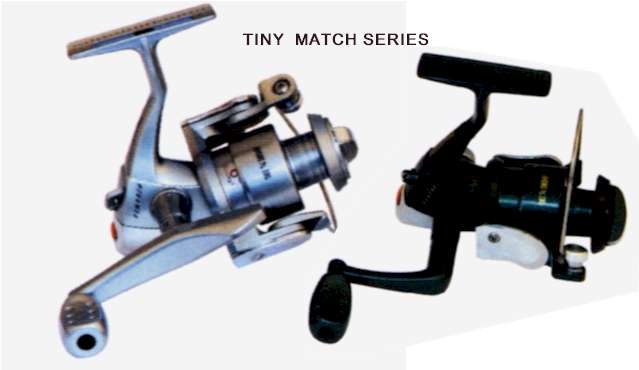

 Front drag control spinning reel tiny"Tiny" Series  RTW series
Size Gear ratio Spool capacity  mm/mtr Spool Capacity lb/yd WT
gs
RTINY81A2 5.1:1 0.15/150, 0.17/120, 0.20/90.

3/130, 4/80, 6/65.

 150
RTINY8100A8 155
RTINY82A2 0.17/130, 0.20/110, 0.23/120

3/150, 4/120, 6/100

 160
RTINY8200A8 165

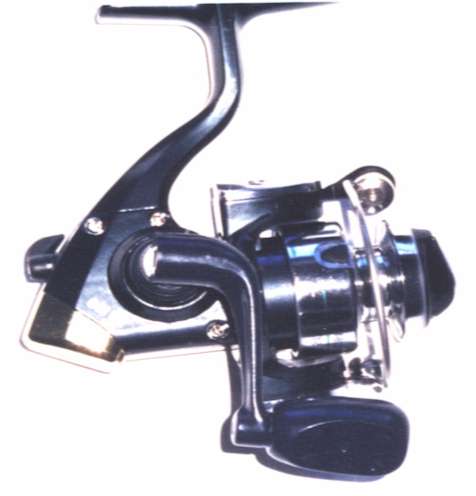

RTW100A2 0.15/190. 0.18/150,0.20/125 4/210, 5/170, 6/135 150

Aluminium spool+ spare graphite spool, Ball race 2-8bb, Handle closing by a quick push button.  Anti reverse clutch standard on all models.,  Reinforced plastic frame.

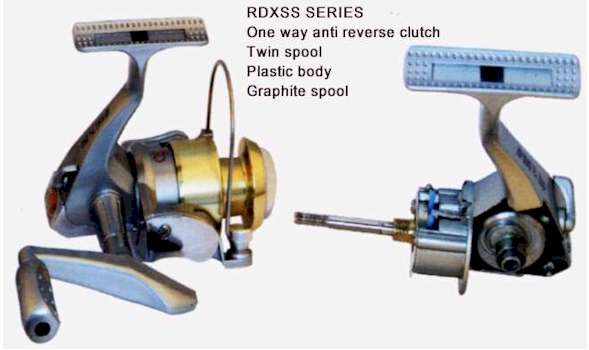

 Front drag control spinning reel dxs"RDXSS" Series
Size Gear ratio Spool capacity  mm/mtr Spool Capacity lb/yd WT
gs
RDXSS81A1 5.1:1 0.15/150, 0.17/120, 0.20/90.  3/130, 4/80, 6/65. 140
RDXSS8100A8 150
RDXSS82A1 0.17/130, 0.20/110, 0.23/120 3/150, 4/120, 6/100 145
RDXSS8200A8 155

Aluminium spool+ spare graphite spool, Ball race 3-8bb, Handle closing by a quick push button.  Anti reverse clutch standard on all models.,  Reinforced plastic frame.


12/10/2002

Pro Fishing Supplies  Singapore- Export sales centre. Bk 9002 Tampines St 93, #04-62
Operational Centre : China
Tian Ma Fishing Tackle Corp., 1 Da cang , International Fishing Tackles City, Heibei province, China 065301

Fax: 86-316-8862387   Tel (HP) 86-1380-4036492  Email [email protected]     or [email protected]
Foot note: All inquiries will be acknowledged within 48hrs, if there is no response please resend, as emails can be quite unpredictable
