Study of Chamfer Cut or Shelf Cut
at intersection of
Valley Rafter Foot with Principal Common Rafter

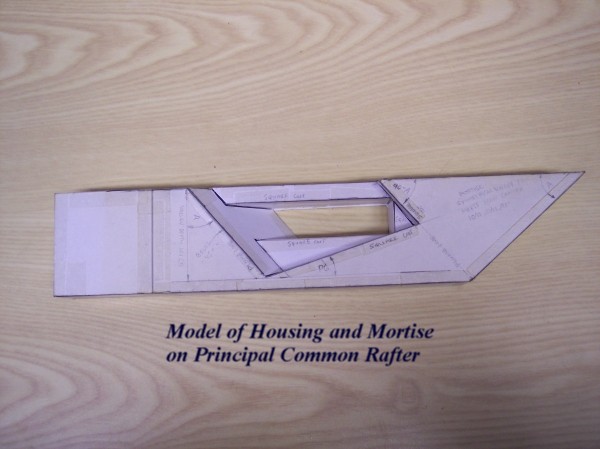

Model of Principal Common Rafter housing to accommodate Valley Rafter Foot

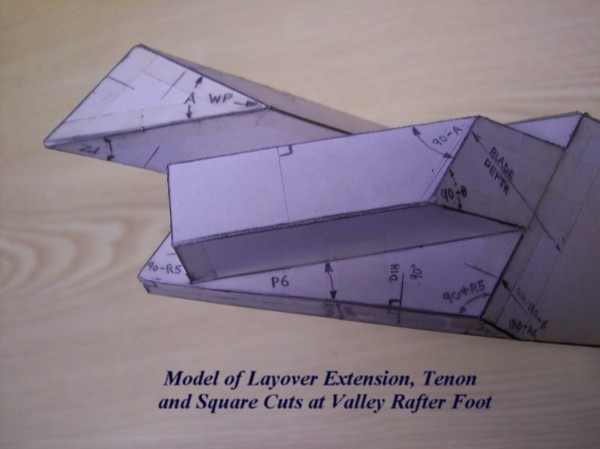

Model of Valley Rafter Foot with Shelf Cut, Tenon and Layover Extension

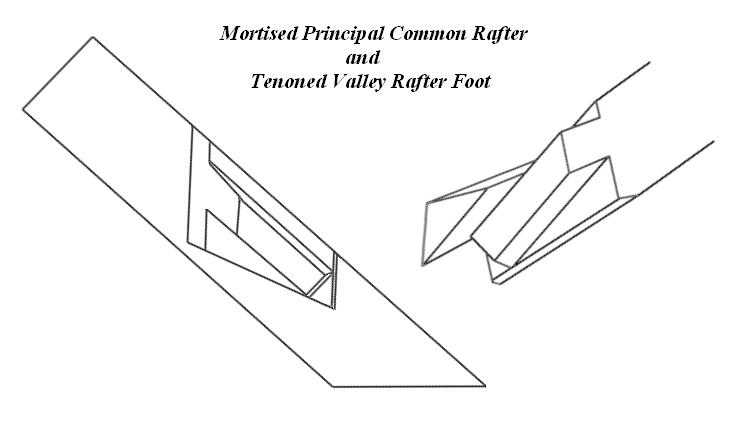

Valley Rafter Foot intersects Principal Common Rafter

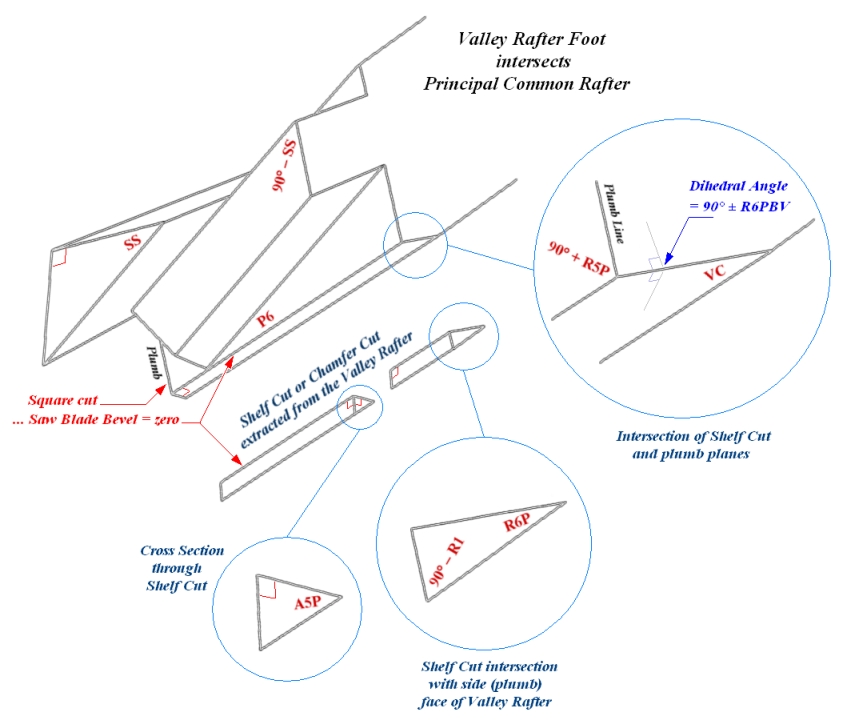

Chamfer Cut extracted from the Valley Foot

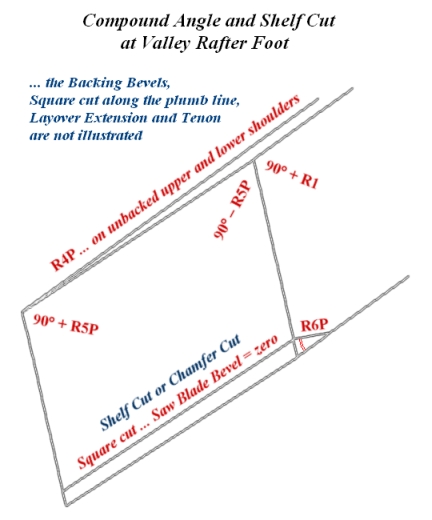

Compound Angle and Shelf Cut at the Valley Rafter Foot

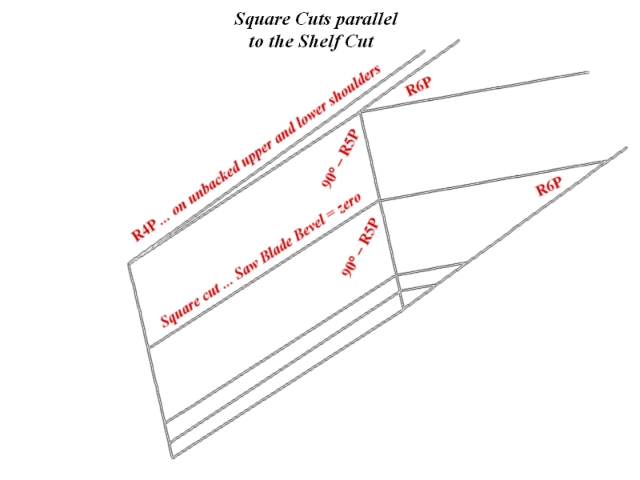

Compound Angle at the Valley Rafter Foot ... Parallel Square Cuts

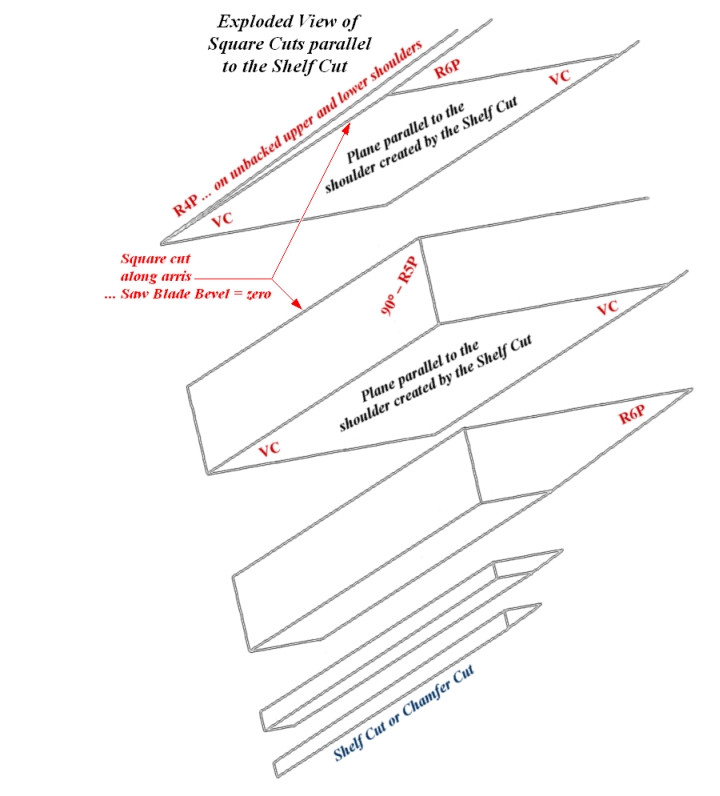

Compound Angle at the Valley Rafter Foot ... exploded view of Parallel Square Cuts

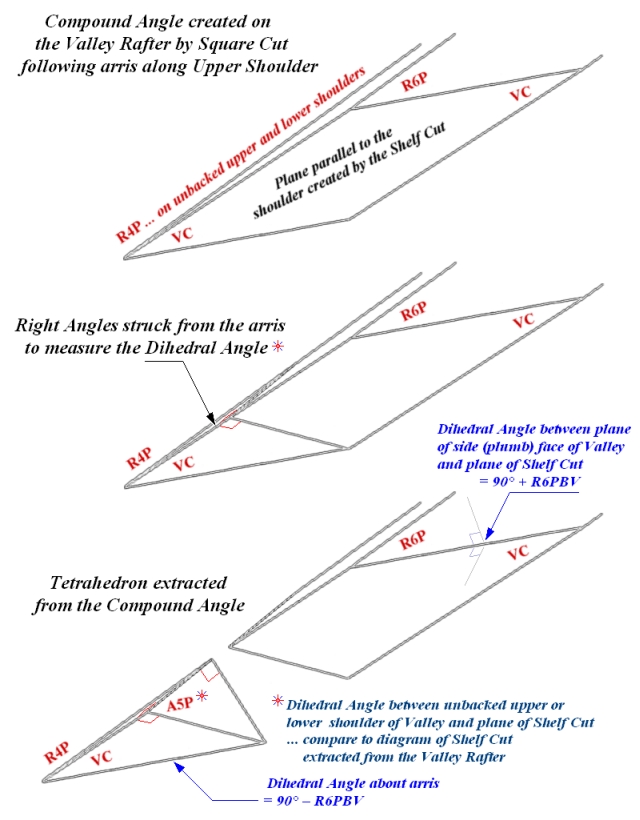

Tetrahedron extracted from Compound Angle modeling the Shelf Cut at the Valley Rafter Foot

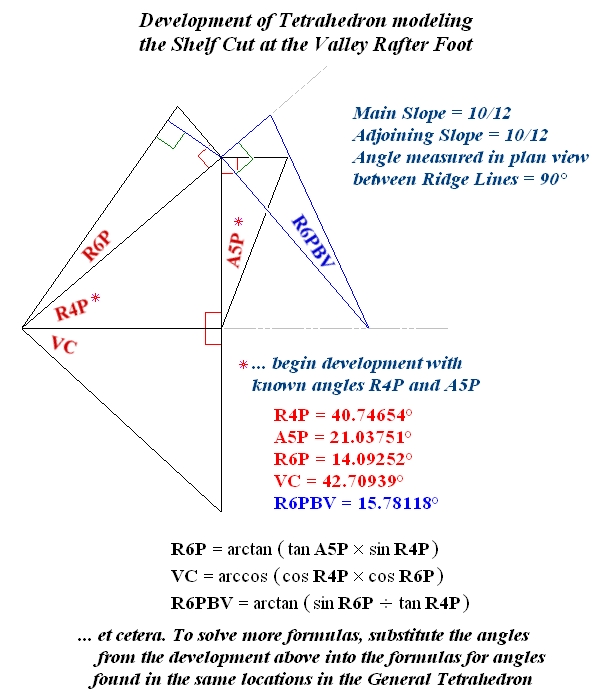

Development of Tetrahedron modeling the Shelf Cut
Joe Bartok
