Hip Roof with flared Rafters and Eaves

Hip Roof with flared Rafters and Eaves

Ellipsoid and Ovoid Calculator

Hip Roof with Square Footprint

Orthographic Projection

Orthographic Projection of Flared Hip Roof ... Square Footprint

Orthographic Projection of Flared Hip Roof ... Square Footprint

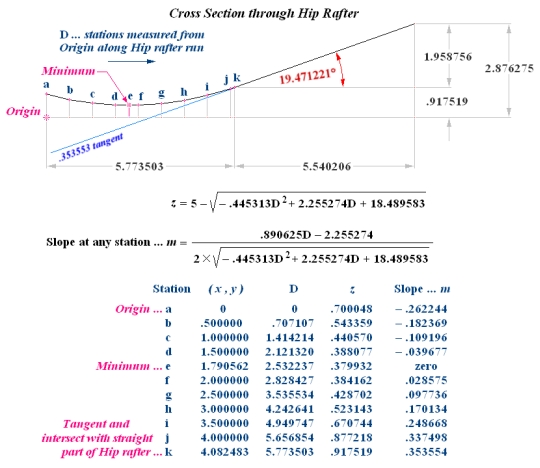

Cross Section through Hip Rafter ... Square Footprint

Algebraic solution of Formulas

Detail of Ellipse: Cross Section through Hip Rafter

Detail of Ellipse: Cross Section through Hip Rafter ... Square Footprint

Development of Roof Surface

Development of Flared Hip Roof surface ... Square Footprint

Bird's Eye View of Roof

Bird's Eye View of Flared Hip Roof ... Square Footprint

Elevation of Roof

Elevation of Flared Hip Roof ... Square Footprint

Hip Roof with Hexagonal Footprint

Orthographic Projection

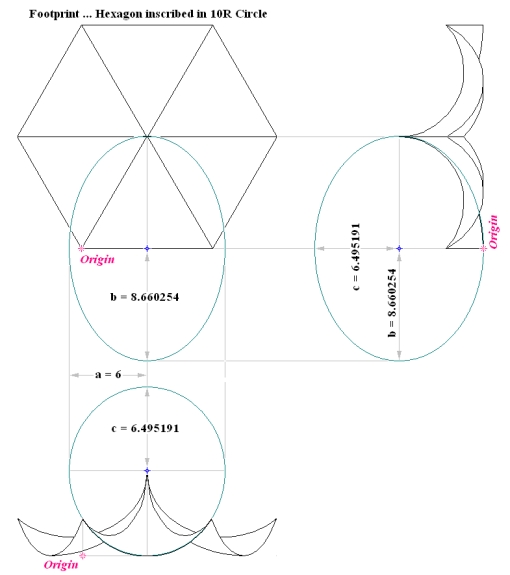

Orthographic Projection of Flared Hip Roof ... Hexagonal Footprint

Cross Section through Hip Rafter ... Hexagonal Footprint

Algebraic solution of Formulas

Detail of Ellipse: Cross Section through Hip Rafter

Detail of Ellipse: Cross Section through Hip Rafter ... Hexagonal Footprint

Development of Roof Surface

Development of Flared Hip Roof surface ... Hexagonal Footprint

Bird's Eye View of Roof

Bird's Eye View of Flared Hip Roof ... Hexagonal Footprint

Oblique View of Roof

Oblique View of Flared Hip Roof ... Hexagonal Footprint

Sections extracted from Roof
Ellipses modeling the Rafters

Section modeling the rafters extracted from Flared Hip Roof ... Hexagonal Footprint
