Drawings and Models
Circular Arch intersection with Cone


Circular Arch intersects Circular Cone
Elliptical Arch intersects Elliptical Cone

Projection of points to determine Footprint

Location of footprint points from Orthographic Projection
Footprint of intersection and Development of Arch Surface

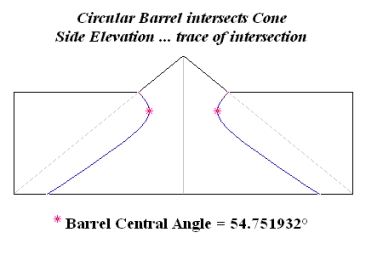

Side Elevation ... trace of intersection

3D Models of Layover Barrel and Cone Intersection

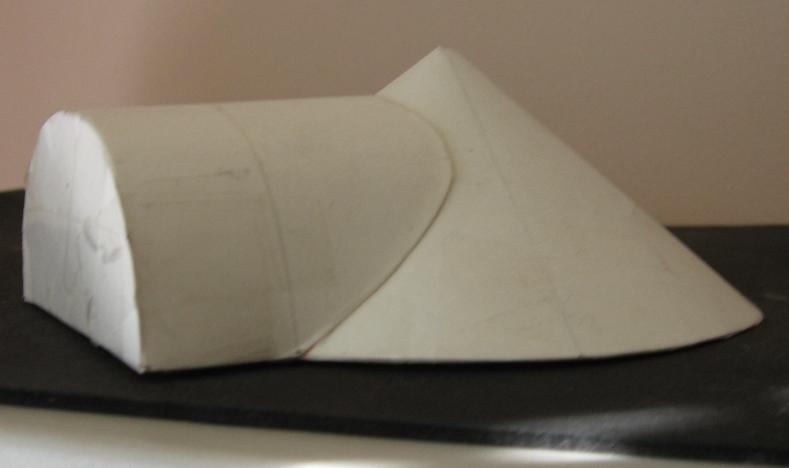

Oblique View of 3D Model
Front View of 3D Model
Top View of 3D Model

3D Models of Plumb Valley Barrel and Cone Intersection

Development of Curved Valley Arc Lengths

Arc Lengths of Exploded 3D Model

3D Model of Curved Plumb Valley ... partitioned along Valley

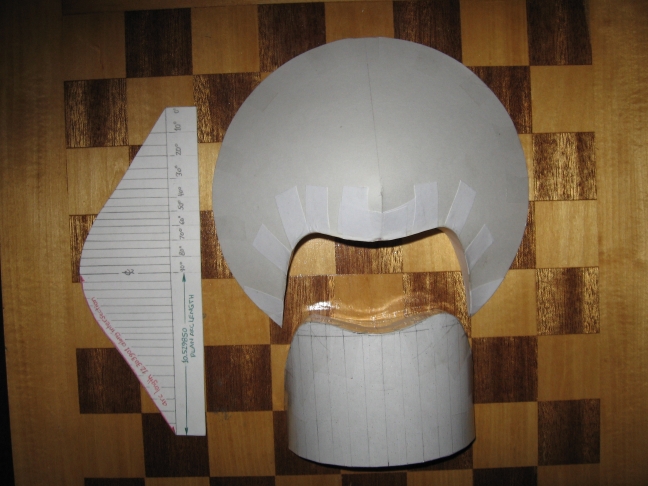

Plan View of 3D Model Components

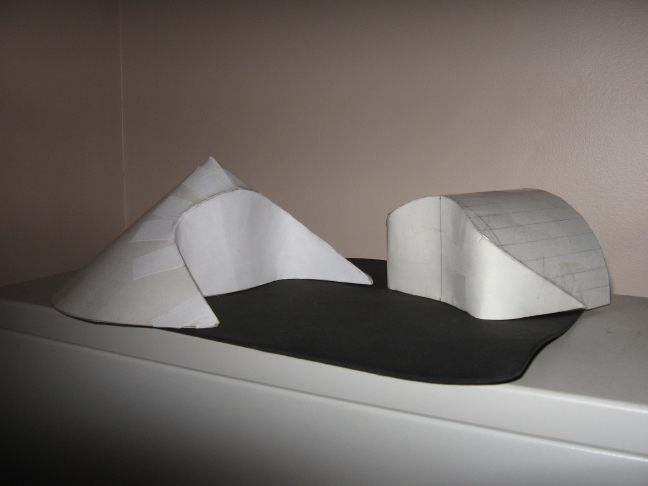

Exploded View of 3D Model
Assembled 3D Model

Cone Slope Angle = 90 ... Double Radius intersection

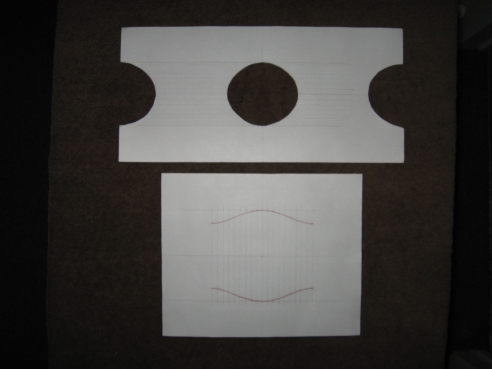

Development of the Cylinder Surfaces ... Top: 5 radius cylinder, Bottom: 3.5 radius cylinder

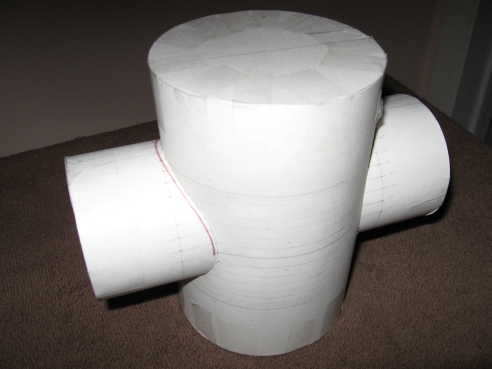

Assembled 3D Model ... 3.5 radius cylinder skewers 5 radius cylinder
Side View of Assembled 3D Model

Developments of Surfaces
Cone with Elliptical Base and Elliptical Barrels


Developments of Surfaces ... Cone with Elliptical Base and Elliptical Barrels

3D Models of Elliptical Barrels intersecting Cone with Elliptical Base

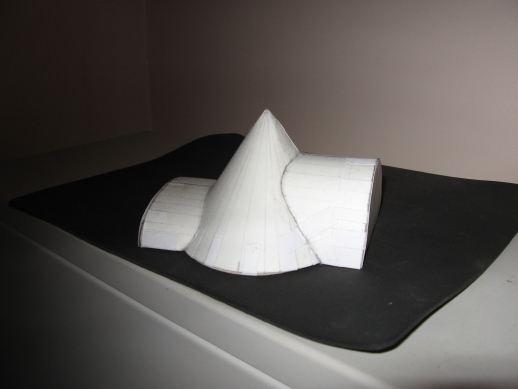

3D Model of Cone with Elliptical Base and Elliptical Barrels
3D Model of Cone with Elliptical Base and Elliptical Barrels
