2 x 10 Watt amp

No-nonsense IC amplifier with TDA2030/2040

Introduction

This amplifier design really excels in simplicity and robustness, thanks to the
use of the TDA2030 or TDA2040 "power op amps", some highlights:

• Short circuit proof outputs.
• Built in thermal protection.
• High supply voltage ripple rejection: no supply stabilization necessary

Altogether, a fool-proof stereo amplifier suitable for many applications.
I use it for my PC, I built the amplifier into a pair of Sony speakers from an old stereo set;
the sound is much better & louder than most commercial "100W" PC speaker sets.

Circuit description

The power supply of the amplifier is built with bridge rectifier B1-4 and elcap C6.
Further stabilization is not necessary because of the high supply voltage ripple rejection (50dB).

• The maximum RMS output power is set by the supply voltage:



  e.g. at 18Vac / 8 ohm.the absolute maximum (sinewave) power is about10Watt.

• Both IC's need to be cooled with a separate heatsink; the heatsink size depends on
  the maximum output power.

• The voltage gain Vin / Vout is set by the ratio R5 /R4 ;in this case about 32 x.
• The amplifier circuit uses a single power supply, the network R1,2,3 biases the amplifier output at ½Vcc.

2 x 10 Watt amplifier schematic:

PCB layout

You can build the circuit on a piece of experiment board, but if you have the equipment to etch pcbs,
you can download pdf file below which contains the pcb layout and the component locations.
To get a negative for your pcb just print the file on a sheet with a 300dpi or better laser printer.

PCB layout: pcb.zip (25kB;left click to download)

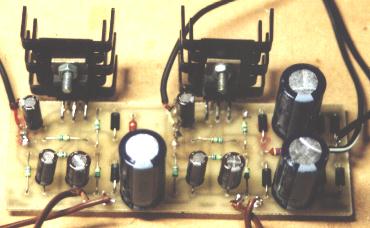

Picture of the assembled circuit:

→ Download specifications of key components at the  Component specs page
