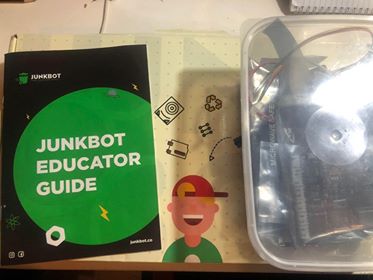

MY junkbot kit
FINAL PROJECT
STEP 1
CONNECT THE ARDUINO BOARD TO YOUR LAPTOP
STEP 2
MAKE THE CODE USING THE JUNKBOT SOFTWARE
STEP 3
CONNECT ALL YOUR WIRING
STEP 4
UPLOAD YOUR CODE TO THE ARDUINO BOARD
STEP 1
CONNECT THE ARDUINO BOARD TO YOUR LAPTOP
STEP 2
MAKE THE CODE USING THE JUNKBOT SOFTWARE
STEP 3
CONNECT THE SENSOR, BUZZER AND LED
STEP 4
UPLOAD YOUR CODE TO THE ARDUINO BOARD

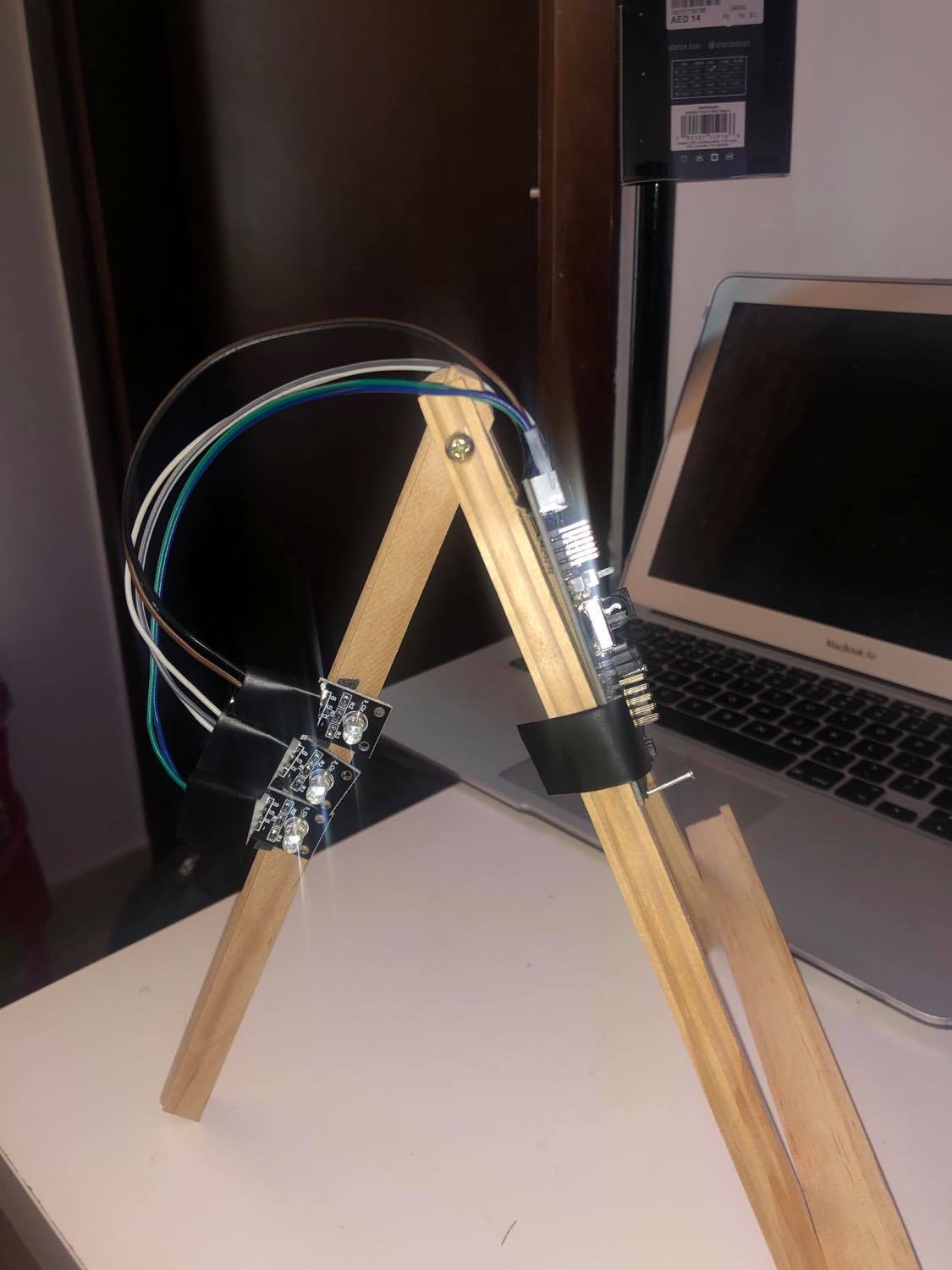

TRAFFIC LIGHT
THIS IS THE PROCESS OF MY PROJECT
SECURITY SYSTEM
THIS IS THE PROCESS OF MY PROJECT
ARDUINO NANO
INCLUDED
ACTS AS THE MOTHERBOARD.
RGB LIGHTS
INCLUDED
I USED THIS TO MAKE A TRAFFIC LIGHT
USB CABLE
INCLUDED
ACTS AS CONNECTOR SO THAT THE ARDUINO BOARD CAN BE USED.
ULTRASONIC SENSOR
INCLUDED
ACTS AS A SENSOR THAT DETECTS MOTION.
BUZZER
INCLUDED
ACTS AS THE SOUND SOURCE.
LED LIGHT
INCLUDED
A BRIGHT LED LIGHT.
