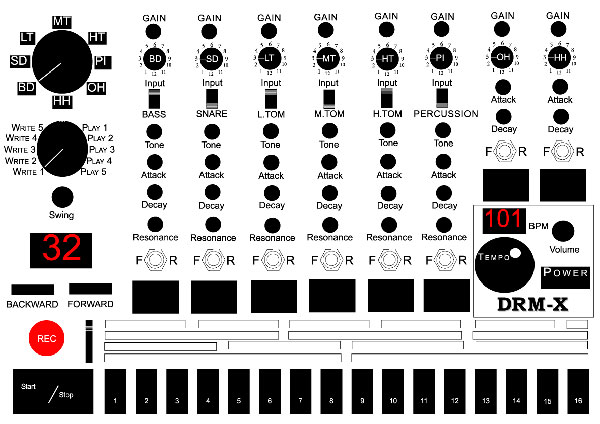

DRM-X
Analog Drum
Machine
|
|
 |
|
 |
| Instrument Selector |
| Selects the instrument for step recording. |
|
Write & Play Banks |
| 5 write & play banks, each bank contains 16 patterns and each pattern can store up to 32 measures. |
| Swing Knob |
| Adjust the swing rate. |
| Measure Indicator |
| Indicates the total number of measures when in STOP mode. |
| Indicates the current measure when in PLAY mode. |
|
BACKWARD / FORWARD |
| Enables you to move forward and backward in measures when in step REC mode. |
| . |
 |
GAIN | |
| Works as a volume control and also adds accent and distortion to the sound. | ||
| SOUND SELECTOR | ||
| Selects different preset sounds. | ||
| INPUT SOUND SWITCH | ||
| When in INPUT mode, it allows the input audio to go thru the filter. | ||
| When in instrument mode, it use the preset instrument as sound source. | ||
| TONE | ||
| Changes the tone of the drum sound. | ||
| Works as a frequency filter when in INPUT mode. | ||
| ATTACK | ||
| Sets the attck time for the filter envelop. | ||
| DECAY | ||
| Sets the decay time for the envelop. | ||
| RESONANCE | ||
| Sets the amount of resonance. | ||
| FORWARD / REVERSE SWITCH | ||
| Enable to switch the sound forward and reverse in preset sound mode, works | ||
| as a ON/OFF switch when in input mode. | ||
| MANUAL TRIGGER PAD | ||
| Enables real time add-on notes and live performance. | ||
