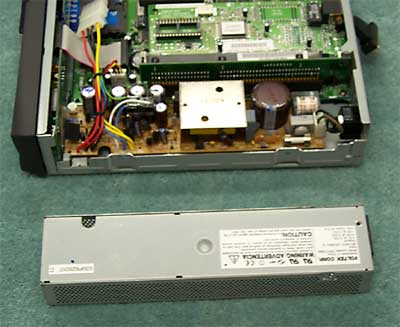

Here is a picture of my NT-150 power supply retrofit. This was the first design where the power supply was mounted with the bracket up.

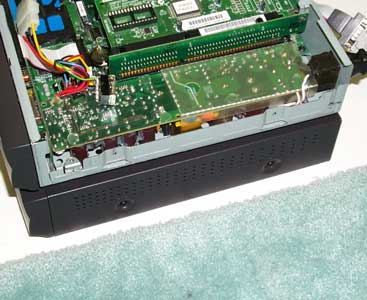

Here is the second try. I mounted the power supply with the metal bracket down. The bracket is attached with screws from the bottom of the NT-150. I also used heat sink compound between the bracket and the case to promote good heat transfer.

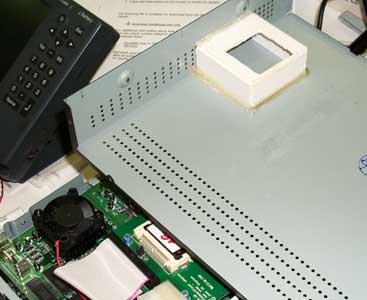

Here is a picture of the "air duct" that I built to bring cool outside air to the CPU. The air comes in through the holes in the side of the case. The hole in the box, err air duct <g>, fits over the fan when the cover is installed. This modification lowers the CPU temperature by quite a bit.
|
|
