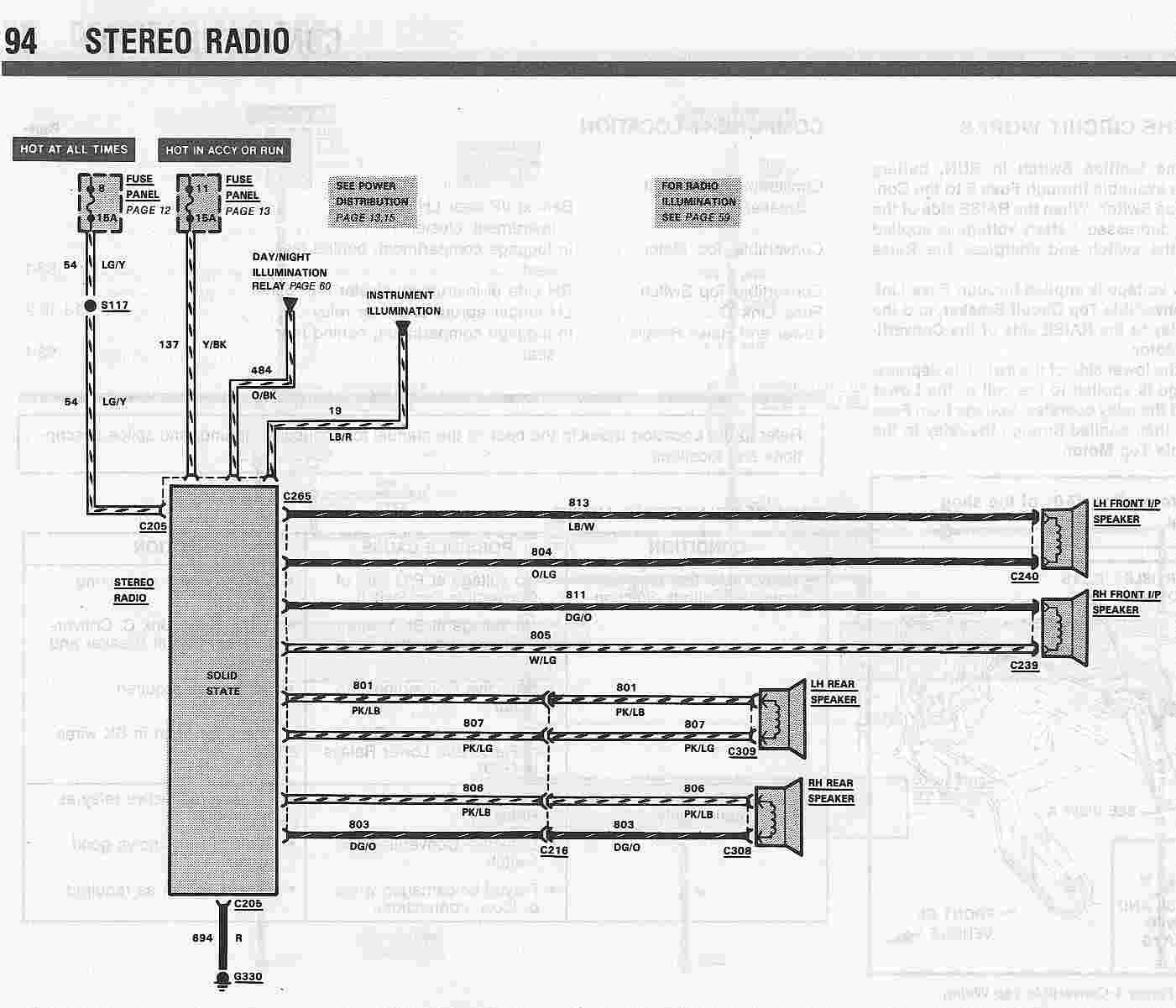

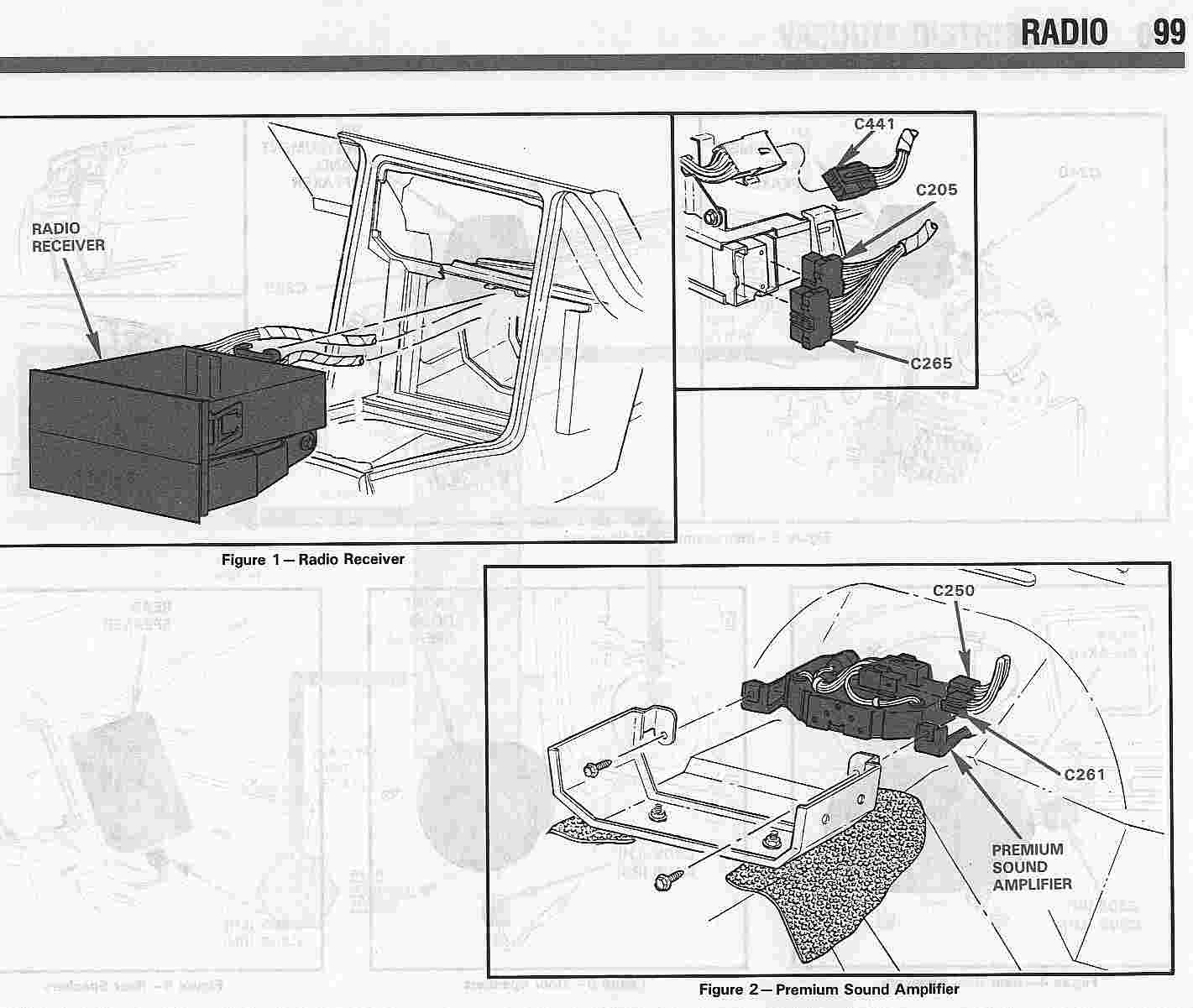

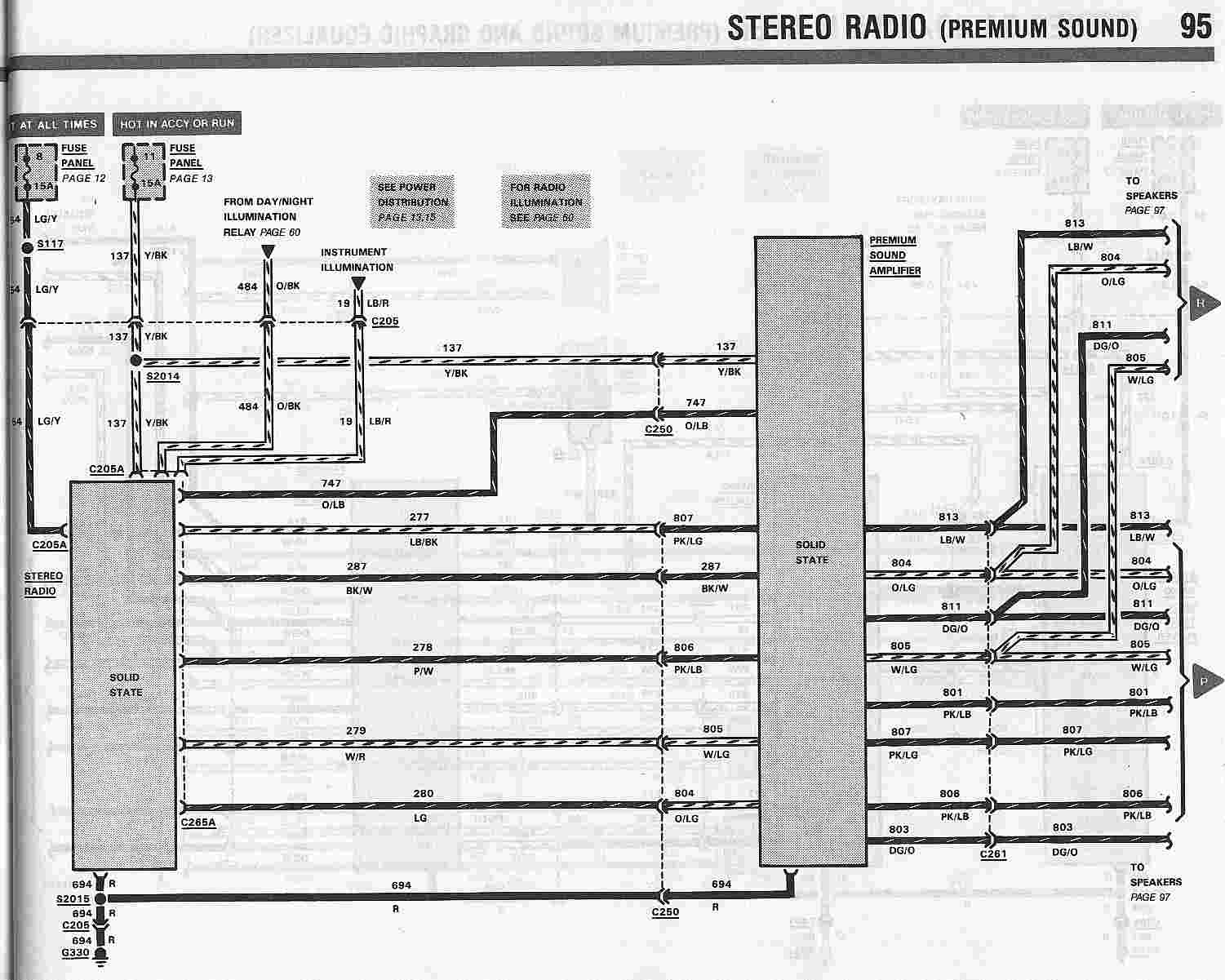

The diagrams below are excerpted from "Electric and Vacuum Troubleshooting Manual", FPS-12121-88; Copyright © 1987 Ford Motor Company.












Revised: September 22, 2001 09:11 PM

Hosted by www.Geocities.ws

1
