360° coarse/± 5° fine adjustment
360° scale graduated in 1° increments
Resolution: 10 arc-sec
All inside moving parts are made of stainless steel
100-pitch fine adjustment

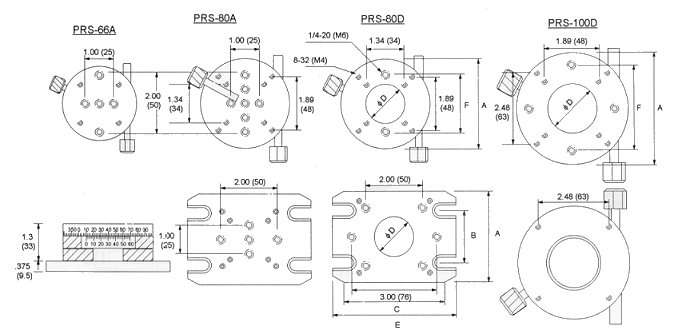

Stock Number |
A |
B |
C |
D |
E |
F |
Platform |

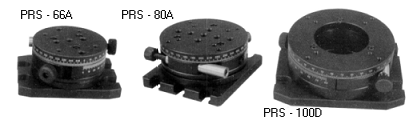

PRS - 66A |
2.6 (66) |
1.00 (25) |
3.00 (75) |
– |
3.54 (90) |
– |
Solid |
PRS - 80A |
3.15 (80) |
2.00 (50) |
3.00 (75) |
– |
3.54 (90) |
– |
Solid |
PRS - 80D |
3.15 (80) |
2.00 (50) |
3.00 (75) |
1.58 (40) |
3.54 (90) |
2.00 (50) |
Aperture |
PRS - 100D |
3.94 (100) |
2.00 (50) |
4.00 (100) |
2.00 (50) |
4.72 (120) |
3.00 (75) |
Aperture |
To order Metric model, add "M" to the stock number. |
Mounting Bridles:
|
A set of 4 to secure PRS - 80A/PRS - 80D (with baseplate removed) directly to translation stages
Stock Number |
MBR - 1 |
To order Metric model, add "M" to the stock number. |
|
