C–MOUNT SIMPLE LENS |
||||
|

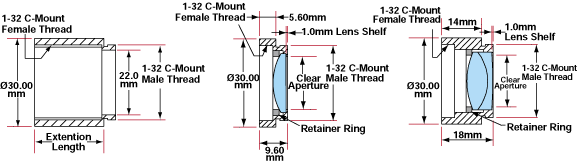

A 30mm diameter x 5.6mm thick cell with a centered hole to accept single element lenses, filters, reticles, etc. A threaded retaining ring, designed to accept a standard straight flat blade spanner wrench, holds the element in place. |
| Description | Clear Aperture |
Accepts Diameters |
Edge Thickness (mm) |
Stock Number |
| 3mm Holder | 2.3 | 2.5 - 3 | 1 - 3 | NT54 - 611 |
| 4.5mm Holder | 3.8 | 4.5 - 5 | 1 - 3 | NT54 - 612 |
| 6mm Holder | 5.2 | 5.5 - 6 | 1 - 3 | NT54 - 613 |
| 9mm Holder | 8 | 8.5 - 9 | 1 - 3 | NT54 - 614 |
| 12mm Holder | 11.2 | 11.75 - 12 | 1 - 3 | NT54 - 615 |
| 12.5mm Holder | 12 | 12.5 - 13.5 | 1 - 3 | NT55 - 246 |
| 15mm Holder | 13 | 14 - 15 | 1 - 3 | NT54 - 616 |
| 18mm Holder | 16 | 17 - 18 | 1 - 3 | NT54 - 617 |
| 20mm Holder | 18 | 19 - 20 | 1 - 3 | NT54 - 618 |
