CAP (customized arcade panel) project involves building a customized
arcade control panel.  Control panel box is build from a 2'x4' piece of
wood from scratch, it is purchased at Home Depot, cut at Minton's lumber
yard, and assembled in my backyard.  Joysticks and buttons are purchased
from Happ controls; keyboard encoder IC (integrated circuit) is
purchased from a guy from UK.  The panel is hooked up to a PC (personal
computer) via PS2 connector.  I chose STB Velocity 128 graphic card in this
PC simply because it's available and has a TV output.  Once everything
is connected, I can play arcade games with my dad's 50" TV and using
realistic arcade style control.  Followings are snapshots of progress of
this project.

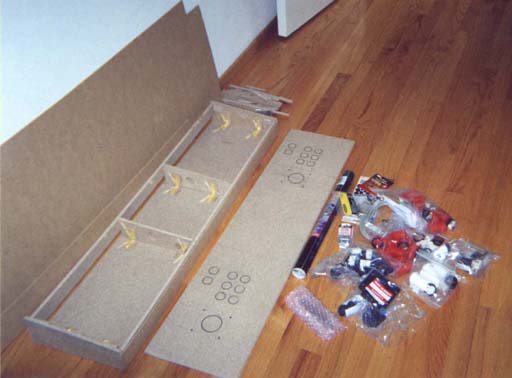

chasis cutted and assembled

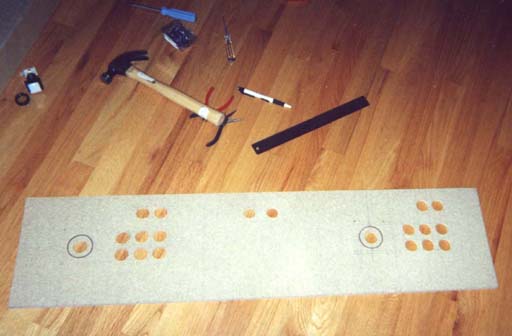

panel piece drilled for button and joystick installation

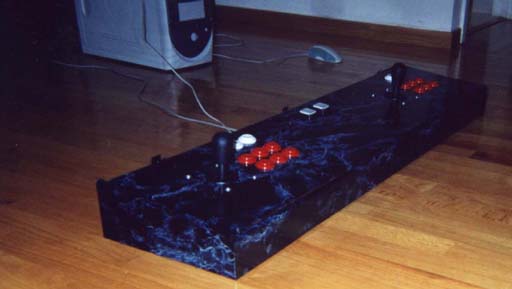

finished and project testing

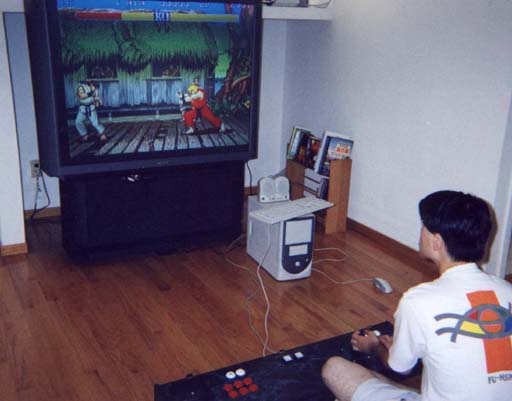

Beta tester (my brother) working  hard & testing
